Hand-held Auto Feeding Screwing Device

Air blowing type automatic feeding and locking screw machine, the screws are sorted by the feeding system and distributed through the distributor
Screws and pipes send the screws to the claw clamp, and then automatically send them to the electric batch nozzle through the air cylinder. Power approved.
Automatically lock into the product.
The air-blowing automatic locking screw machine is generally suitable for screws with a head diameter of 5mm or less, and the length
It is required to be less than 25mm. In addition, the total length of the screw is required to be more than 1.3 times the diameter of the screw head.
Otherwise, the screw will turn over in the feeding tube and the screw cannot be sent out normally. Pay one per lock
One screw is delivered, and the feeding speed can reach 1s/pcs.

In addition to the Handheld Auto Screw Feeder, our company also has many products, such as Soldering Fume Extractor, Solder Paste Dispenser, Pneumatic Hand-held Screw Feeder,Extruder Screw Feeder and Robot Arm Machine. If you need these products, you can contact us, we will reply to you as soon as possible.

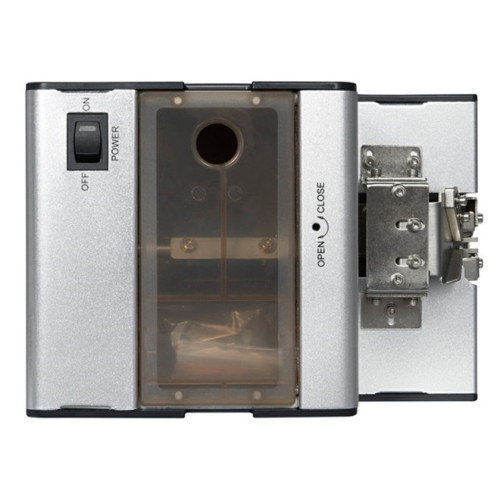

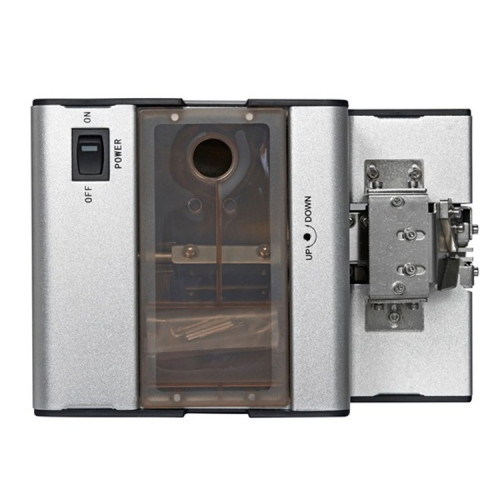

Performance of KS-1050C Changeable Rail Automatic Screw Feeder:

1. Widest range of applicable screw sizes.

2. Max of screw length and hopper capacity.

3. Applicability of special screw types.

4. Size of feeding rial is adjustable.

5. Save parts costs and stock.

6. Adjustable vibration intensity.

7.Humanized multi programming control.
