Adjustable Electric Automatic Screw Conveyor
  • Adjustable Electric Automatic Screw Conveyor
  • Adjustable Electric Automatic Screw Conveyor
  • Adjustable Electric Automatic Screw Conveyor
Adjustable Electric Automatic Screw Conveyor
Adjustable Electric Automatic Screw Conveyor
Adjustable Electric Automatic Screw Conveyor

Adjustable Electric Automatic Screw Conveyor

Payment Type:
L/C, T/T, D/P, Paypal, Western Union
Incoterm:
FOB, EXW
Min. Order:
2 Set/Sets
Min. Order:
2 Set/Sets
Delivery Time:
7 Days
Transportation:
Ocean
Port:
Shenzhen Port
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Productivity: 1000set/month
Supply Ability: 10000set/year
Payment Type: L/C,T/T,D/P,Paypal,Western Union
Incoterm: FOB,EXW
Certificate: CE,CCC,ROHS and ISO9001:2008
Transportation: Ocean
Port: Shenzhen Port
Product Description
Product Description


Adjustable Electric Automatic Screw Conveyor

Features of Automatic Screw Feeder:
1. Simple operation
Even a novice can learn the operation method immediately, regardless of whether it is metric or imperial specifications, it can be operated freely and easily understood.
2. Can greatly increase productivity
There is no need to adjust the position of the screw head. Compared with the traditional screw plate, each screw can save 1.4 seconds, and the production efficiency is increased by 4 times!
3. With counting function (some models)
The counting function is automatic alarm, cycle, with digital display panel, which is clear at a glance.
4. With fault alarm function
When an abnormal situation occurs, the screw machine will automatically activate the fault alarm device.
5. Small size and no space
In addition to the Handheld Auto Screw Feeder, our company also has many products, such as Soldering Fume Extractor, Solder Paste Dispenser, Pneumatic Hand-held Screw Feeder,Extruder Screw Feeder and Robot Arm Machine. If you need these products, you can contact us, we will reply to you as soon as possible.

Related Products

9


Servo Motor Series

BC-B electric screwdriver for assembly line 2


Intelligent Counter Series

BC-B promotional screwdriver 2


Built-in Counter Series

A promotional screwdriver 2


Economical Series

AE electric screwdriver for assembly line 2


Super Value Series

2


Screw Feeder

4


Screwdriving Machine

7


Robot Arm

Performance of KS-1050C Changeable Rail Automatic Screw Feeder:



1. Widest range of applicable screw sizes.



2. Max of screw length and hopper capacity.



3. Applicability of special screw types.



4. Size of feeding rial is adjustable.



5. Save parts costs and stock.



6. Adjustable vibration intensity.



7.Humanized multi programming control.



Specifications




Model Name & Number

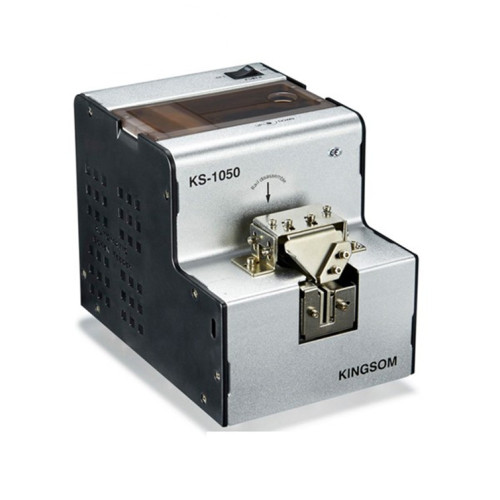

KS-1050

Size

182(W)*126(L)*147(H) mm

Weight

N.W:Appror2.17kgs(excluding switching adaptor)

Power Source

AC 100-240V

Switching Adaptor

DC 15V Switching Adaptor

Applicable Screw

From M1.0 to M5.0

Applicable Screw Length

UP to 19mm (under head)

Scooping Chamber Capacity

200-220cc

Accessores

(in package & box)

Allen Wrench ( L SHAPED 2.0*107 mm) *1pc.

Switching Adaptor *1 set.

Accessary( front) (0.8,1.0,1.2,1.5,20*70 mm) * 1pc

Accessary(behind) (0.2*10*20 mm) *2pcs

(0.5*10*20 mm) *10pcs

Stopper 2.0-5.0mm *1 pc

Instruction Manual

Package Size

Each Set/Box: 282(L)* 142(W)*201(H) mm

Each Carton: 450(L)*310(W)*435(H) mm

Package Weight(Including Machine)

Each Set/Box G.W.:Approx 2.63 kgs

Each Carton G.w.:Approx 16.53 kgs (One Box= 6 sets)


 314258





Our Services

1. Your inquiry related to our products or prices will be replied in 24 hours.

2. Well-trained and experienced staffs to answer all your inquiries in fluent English

3. OEM&ODM

4. Good quality paper box & carton packing

5. Double check before shipping

6. Safely Shipping method,such as DHL /EMS /FEDEX/TNT /UPS

7. Ocean Freight or cargo forwarder service

8. Sample order in small quantity is acceptable

For more detailed information or catalog, please kindly contact us!
