Kingsom Automatic Screw Feeder Machine

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 5 Days

Transportation:: Ocean, Land

Port:: Shenzhen Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	10000sets/year
Supply Ability:	Strong
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,CCC,ROHS and ISO9001:2008
Transportation:	Ocean,Land
Port:	Shenzhen Port

Product Description

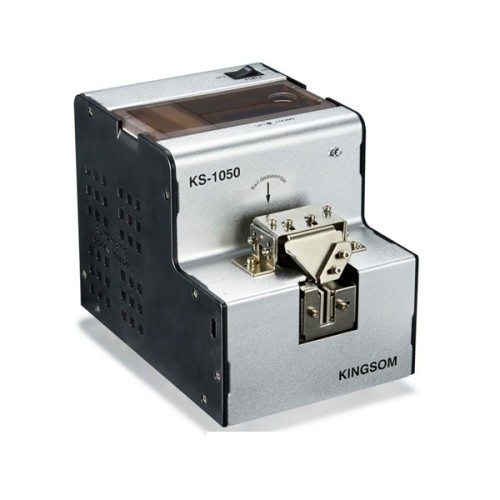

Automatic Screw Feeder Machine

Matters needing attention when using Pneumatic Auto Screw Feeder: Keep the sliding of the electric screwdriver nose on the electric screwdriver mouth smoothly, otherwise the screw will not enter the electric screwdriver mouth easily, which will affect the use of the machine. Do not bend the screw conveying pipe, otherwise the screw will get stuck in the bend during the screw conveying process. Be sure to wait for the torque of the electric batch to reach the set torque, and then lift the electric batch after the electric batch stops automatically. Otherwise, the machine will not move and send a screw to the nose of the electric batch to be locked.

In addition to hand-held automatic screw feeders, Kingsom Co., Ltd. also produces Electric Screwdriver Tool Set, Servo Electric Screwdriver, Electric Screwdriver Power Controller, Automatic Electric Screwdriver Set, 110v Mobile Phone Electric Screwdriver Pen, etc.

Product Description

1. Widest range of applicable screw sizes.

2. Max of screw length and hopper capacity.

3. Applicability of special screw types.

4. Size of feeding rial is adjustable.

5. Save parts costs and stock.

6. Adjustable vibration intensity.

7.Humanized multi programming control.

Specifications

Model Name & Number	KS-1050
Size	182(W)126(L)147(H) mm
Weight	N.W:Appror2.17kgs(excluding switching adaptor)
Power Source	AC 100-240V
Switching Adaptor	DC 15V Switching Adaptor
Applicable Screw	From M1.0 to M5.0
Applicable Screw Length	UP to 19mm (under head)
Scooping Chamber Capacity	200-220cc
Accessores (in package & box)	Allen Wrench ( L SHAPED 2.0107 mm) 1pc.
	Switching Adaptor *1 set.
	Accessary( front) (0.8,1.0,1.2,1.5,2070 mm) 1pc
	Accessary(behind) (0.21020 mm) *2pcs
	(0.51020 mm) *10pcs
	Stopper 2.0-5.0mm *1 pc
	Instruction Manual
Package Size	Each Set/Box: 282(L)* 142(W)*201(H) mm
Package Size	Each Carton: 450(L)310(W)435(H) mm
Package Weight(Including Machine)	Each Set/Box G.W.:Approx 2.63 kgs
Package Weight(Including Machine)	Each Carton G.w.:Approx 16.53 kgs (One Box= 6 sets)
