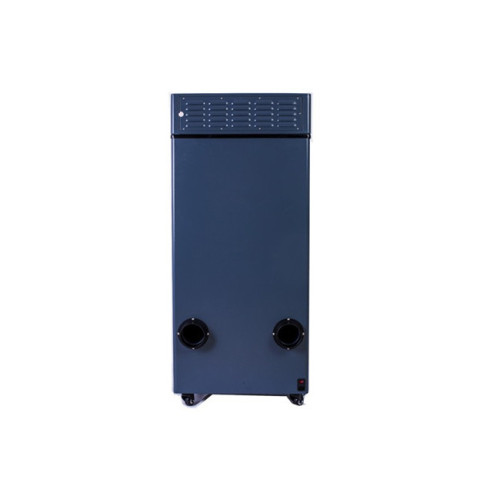

Welding Fume Extraction for Air Cleaning System

Welding Fume Extraction for Air Cleaning System is aimed at wave soldering, reflow oven, laser cutting and marking, grinding, electric welding and other occasions that generate a large amount of smoke, dust, and odor

Comprehensive purification and filtration of toxic and harmful gases. Large suction power and low noise ≤70dB, using DC brushless motor to run stably, low noise, high efficiency, low energy consumption, adjustable air volume and suction power.

Our company can also develop customized purifiers according to the special requirements of customers, such as Lab Fume Extractor, Soldering Fume Extractor, Beauty Salon Air Filter, Solder Paste Dispenser, High Quality Lab Fume Extractor ，Laser Fume Extractor etc.



Specifications

Model	DX6000
Air inlet interface	Φ90mm *1 flange
Voltage	AC 110-220V
Power	700W
Max. No-load Speed(r/min)	6500
Negative Pressure	3000Pa
Filtering effect	0.3μm99.97%
Noise	<75dB
Flow	620m³/h
Dimensions(L*W*H)	550*415*1070mm
Weight	75kg

Product Consumprion (caculated according to 8 hours everyday)

1st Layer:

Fire prevention net: 410*330*25(mm)

Replacement period: not required for the whole service life, only need regular

2nd Layer:

Primary filter element: 420*340*28(mm)

Replacement period: 1-4 week

3rd Layer:

PP Medium efficiency filter element: 450*380*100(mm)

Replacement period: 2-6 month

4th Layer:

High efficiency glass fiber  filter element: 450*380*50(mm)

Replacement period: 3-5 month

5th - 8th Layer:

Active carbon high efficiency filter element: 450*380*50(mm)

Replacement period: 3-6 month

We can configure different filter element as you need.

Detail Images

Control Panel and Remote Control

Different ducts and nozzles for option

Applications
