DX6000 Air Cleaner Filter Equipment with Replaceable Filter Element

Feratures: Mainly for laser cutting engraving odor and dust remover,hair beauty nail salon, manual soldering, soler pot.Vortex fan design, characterized by fatigue resistance, smooth running, low noise, large air volume, high suction and high efficiency..Multiple-filter design ensures thorough purification  Noise reduction design,quiet operation.Step-less speed regulator installed for remote control of air volume.All filter elements are replaceable, which both extends the service life of filtering cores and reduces their operating cost.CE certified, safe and reliable. National air quality testing certified.All metal frame construction, resists impact and vibration.Spark Trap.

Our company can also develop customized purifiers according to the special requirements of customers, such as Lab Fume Extractor, Soldering Fume Extractor, Beauty Salon Air Filter, Solder Paste Dispenser, High Quality Lab Fume Extractor ，Laser Fume Extractor etc.



Specifications

Model	DX6000
Air inlet interface	Φ90mm *1 flange
Voltage	AC 110-220V
Power	700W
Max. No-load Speed(r/min)	6500
Negative Pressure	3000Pa
Filtering effect	0.3μm99.97%
Noise	<75dB
Flow	620m³/h
Dimensions(L*W*H)	550*415*1070mm
Weight	75kg

Product Consumprion (caculated according to 8 hours everyday)

1st Layer:

Fire prevention net: 410*330*25(mm)

Replacement period: not required for the whole service life, only need regular

2nd Layer:

Primary filter element: 420*340*28(mm)

Replacement period: 1-4 week

3rd Layer:

PP Medium efficiency filter element: 450*380*100(mm)

Replacement period: 2-6 month

4th Layer:

High efficiency glass fiber  filter element: 450*380*50(mm)

Replacement period: 3-5 month

5th - 8th Layer:

Active carbon high efficiency filter element: 450*380*50(mm)

Replacement period: 3-6 month

We can configure different filter element as you need.

Detail Images

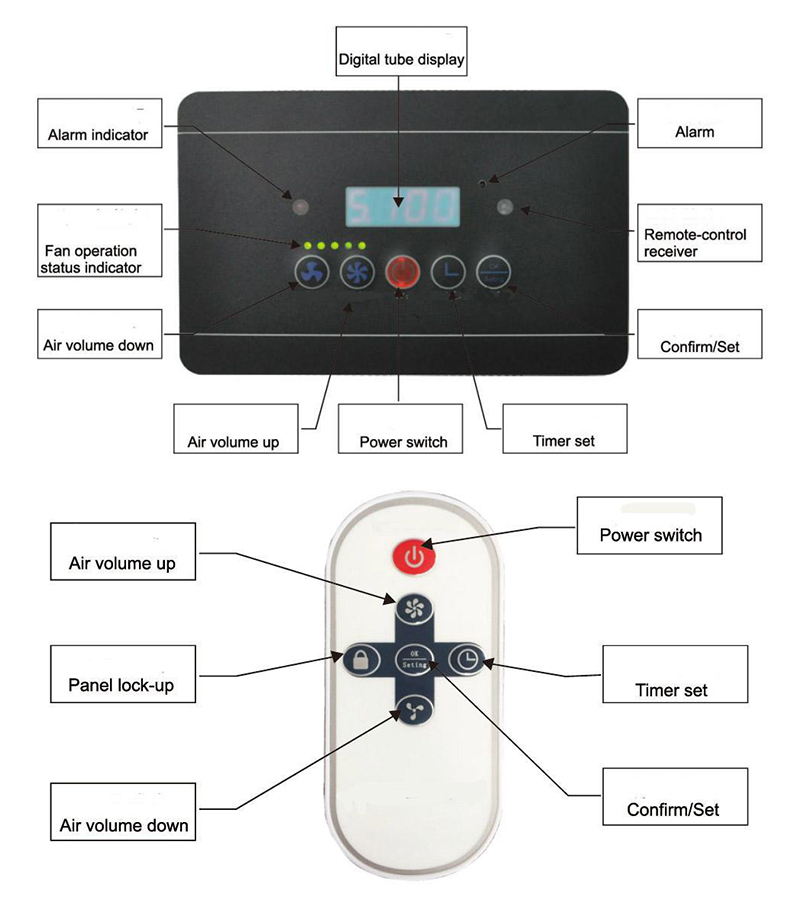

Control Panel and Remote Control

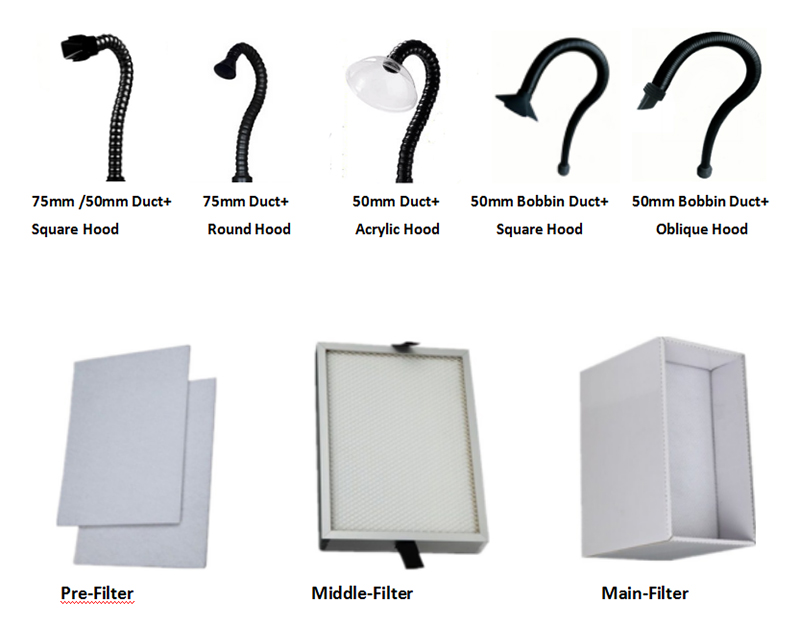

Different ducts and nozzles for option

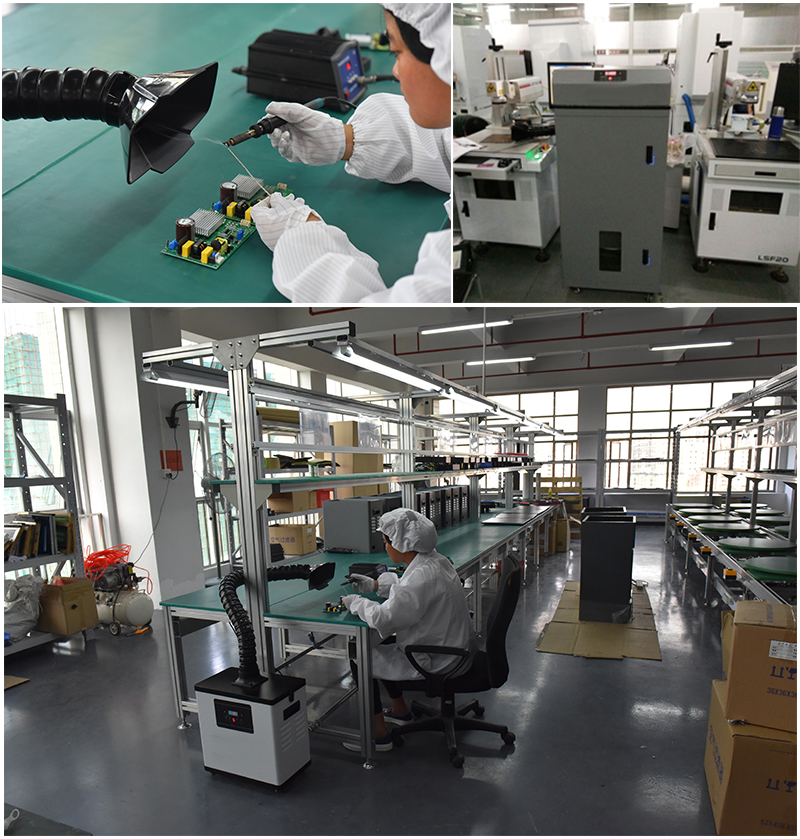

Applications
