Desktop Automatic Screw Locking Machine

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CIF

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 5 Days

Transportation:: Ocean, Land

Port:: Shenzhen Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	10000sets/day
Supply Ability:	Strong
Payment Type:	L/C,T/T
Incoterm:	FOB,CIF
Certificate:	CE,CCC,ROHS and ISO9001:2008
Transportation:	Ocean,Land
Port:	Shenzhen Port

Product Description

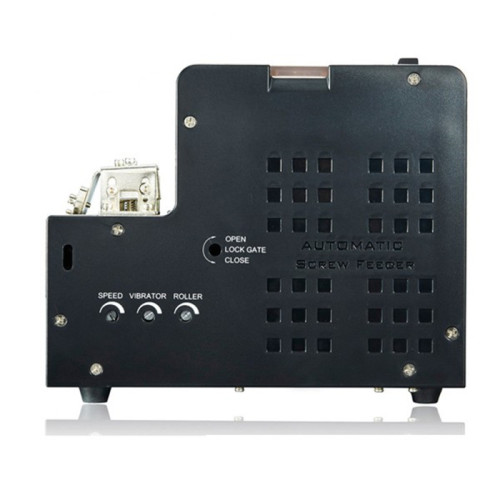

Desktop Automatic Screw Locking Machine

Product features of Automatic Screw Locking Machine: The width of the track can be adjusted, and the picking level components can be adjusted accordingly to adapt to screws of various specifications. Adjust the vibration size, feeding speed, material arrival delay and other parameters. With digital display, it can record the number of screws. The machine can automatically prompt after a fixed amount of screws is taken, which can effectively prevent the missed screwing. Manually select the corresponding working parameter mode according to the screw specifications. The signal communication adopts the USB interface, which can upload the screw quantity data.

Kingsom Co., Ltd. also produces Electric Screwdriver Tool Set, Servo Electric Screwdriver, Electric Screwdriver Power Controller, Automatic Electric Screwdriver Set, 110v Mobile Phone Electric Screwdriver Pen, etc.

Performance of KS-1050C Changeable Rail Automatic Screw Feeder:

1. Widest range of applicable screw sizes.

2. Max of screw length and hopper capacity.

3. Applicability of special screw types.

4. Size of feeding rial is adjustable.

5. Save parts costs and stock.

6. Adjustable vibration intensity.

7.Humanized multi programming control.

Specifications

Model Name & Number	KS-1050
Size	182(W)126(L)147(H) mm
Weight	N.W:Appror2.17kgs(excluding switching adaptor)
Power Source	AC 100-240V
Switching Adaptor	DC 15V Switching Adaptor
Applicable Screw	From M1.0 to M5.0
Applicable Screw Length	UP to 19mm (under head)
Scooping Chamber Capacity	200-220cc
Accessores (in package & box)	Allen Wrench ( L SHAPED 2.0107 mm) 1pc.
	Switching Adaptor *1 set.
	Accessary( front) (0.8,1.0,1.2,1.5,2070 mm) 1pc
	Accessary(behind) (0.21020 mm) *2pcs
	(0.51020 mm) *10pcs
	Stopper 2.0-5.0mm *1 pc
	Instruction Manual
Package Size	Each Set/Box: 282(L)* 142(W)*201(H) mm
Package Size	Each Carton: 450(L)310(W)435(H) mm
Package Weight(Including Machine)	Each Set/Box G.W.:Approx 2.63 kgs
Package Weight(Including Machine)	Each Carton G.w.:Approx 16.53 kgs (One Box= 6 sets)
