Kingsom 3D printed soldering fume extractor
- Payment Type:
- L/C, T/T, Paypal
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land
- Port:
- Shenzhen Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 1000set/month |
| Supply Ability: | 10000set/year |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE |
| Transportation: | Ocean,Land |
| Port: | Shenzhen Port |

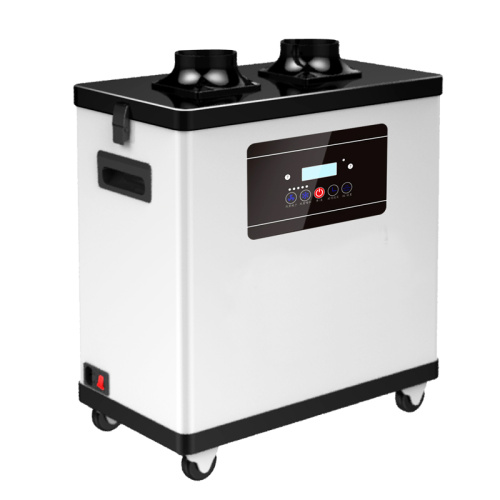

Kingsom 3D printed soldering fume extractor
The 3D Print Fume Extractor fan uses a soft-start, brushless fan, high pressure and high speed, high efficiency, low noise, stable operation and long service life. With composite filter cotton, it can absorb larger dust particles to avoid premature blockage of the main filter layer and prolong the service life of the main filter. The replacement period is 1-3 months according to the actual working situation. The integrated design of 3D Print Fume Extractor fuselage structure, high-quality sheet metal spraying technology, good impact resistance, ensure the stable operation of the equipment. Our company can also develop customized purifiers according to the special requirements of customers, such as Lab Fume Extractor, Soldering Fume Extractor,Mobile Fume Extractor , Solder Paste Dispenser,High Quality Beauty Salon Air Filter，Portable Smoke Absorber etc.
|
|
|
|
|
Applications and Features of this fume extractor
1. Mainly for hair salon, beauty salon, nail salon, manual soldering, solder pot.
2. The purification rate against 300nm pollutions is 99%.
3. Multilayer filtration and rapid purification
4. Noise reduction design, quiet operation.
5. Metal body structure, strong and durable.
6. High-quality alloy fan achieves great suction power.
7. DC brushless motor is stable in performance and long in service life.
8. With digital display and remote controller.
9. With alarm system, it will remind you to replace the filter in time.
| Model | FC-3002 |
| Air inlet interface | Φ75mm *2 flange |
| Voltage | AC 110-220 |
| Power | 300W |
| Max. No-load Speed(r/min) | 6000 |
| Negative Pressure | 3000Pa |
| Filtering effect | 0.3μm99.97% |
| Noise | <65dB |
| Flow | 420m³/h |
| Dimensions(L*W*H) | 425*250*410mm |
| Weight | 15Kg |
Product Consumption (calculated according to 8 hours everyday)
1st Layer:
Primary efficiency filtration cotton: 365*180*25(mm)
Replacement period: 1-2 week
2nd Layer:
Medium efficiency filtration cotton: 365*175*55(mm)
Replacement period: 2-3 month
3rd Layer:
High efficiency filtration cotton: 365*195*250(mm)
Replacement period: 3-6 month
We can configure different filter element as you need.

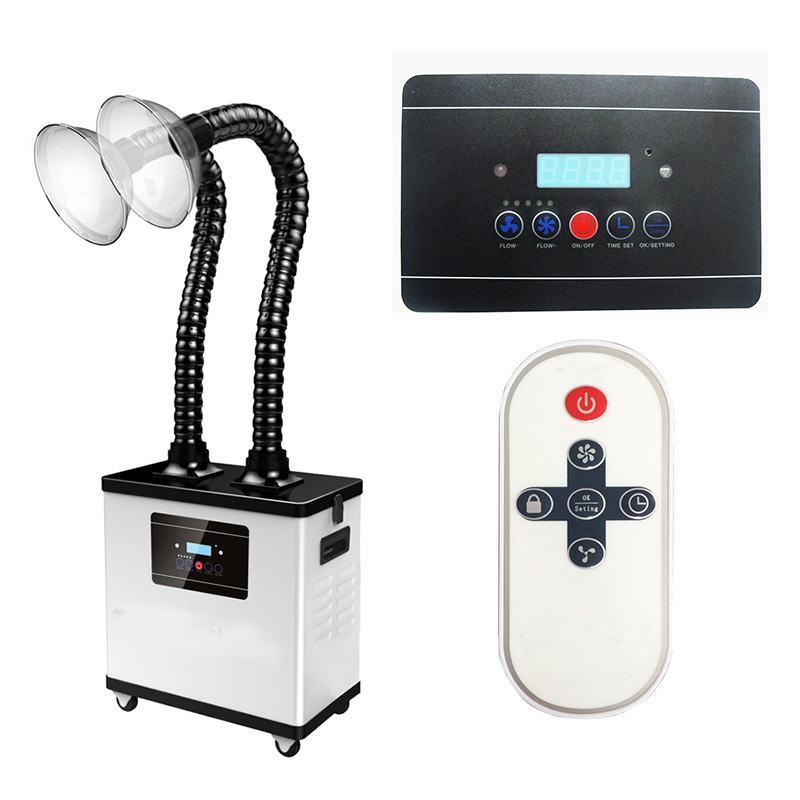

Control Panel and Remote Control
Different ducts and nozzles for option
Application
1. Soldering Process, like Electronics & PCB board producing
2. Laser marking metal process
3. Beauty Salon, Nail Salon, Hair Salon
4. Lab, University, School
5. Printing & AD processing
6. Food, Pharmaceutical & Tobacco Manufacturing
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English
3. OEM&ODM
4. Good quality paper box & carton packing
5. Double check before shipping
6. Safely Shipping method,such as DHL /EMS /FEDEX/TNT /UPS
7. Ocean Freight or cargo forwarder service
8. Sample order in small quantity is acceptable
For more detailed information or catalog, please kindly contact us!
