Touch Panel GSM&PSTN Home Security System (L&L-816)

GSM+PSTN ALARM SYSTEM WITH LCD DISPLAY WHITE COLOR (L&L-816)


I, Features
1. Touch keypad; Big LCD displays(Capacitive touch screen times, New experience)
2. GSM+PSTN dual network. If PSTN is disable, it will switch to GSM automatically
3. Calendar+5 alarm call(SMS) No. +1 alarm center call No. + 1 SMS number to upload system status+ 10S record+ Arm Delay + Alarm Delay + Alarm Beep Setting+ Call-in time setting+ Wireless Program+ Zone Attribute Setting+ User password + Program Password + Reset +100 Alarm History and Status History
4.30 wireless zones + 8 wired zones, every zone attribute, name, bypass, alarm delay, intelligent door sensor function, beep indication could do free setting.
5. Alarm Inform Mode: PSTN Call, GSM Call, GSM SMS
6. Alarm SMS include alarm zone and sensors name
7. Work with Contact ID protocol(alarm information, status information, AC power off and recover, Low voltage, test)
8. Support wireless "ding-dong" doorbell function
II, Technical parameter
1. Working power: AC=100~230V, DC=12V 1A
2. Static current: <35mA (when not charging) Alarm current: <120mA
3. Built-in Li-Ion backup battery: 3.7V 800mAH(rechargeable), Standby: Around 24 hours, Full charging time: 8hours
4.2-Band GSM: GSM900/1800Mhz(4-Band is optional: 850/900/1800/1900Mhz)
5. GSM transmit power: 2W
6. Receiving and emitting range: >100m(non-block)
7. Working condition: Temperature: -10º C ~ 70º C Humidity: 5%~80%


Package:
1*GSM PSTN ALARM PANEL

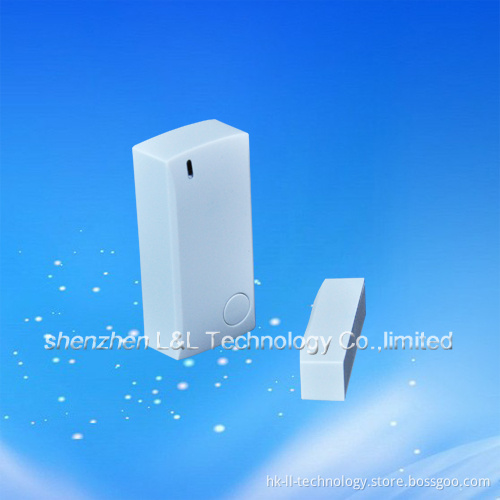

1* DOOR SENSOR

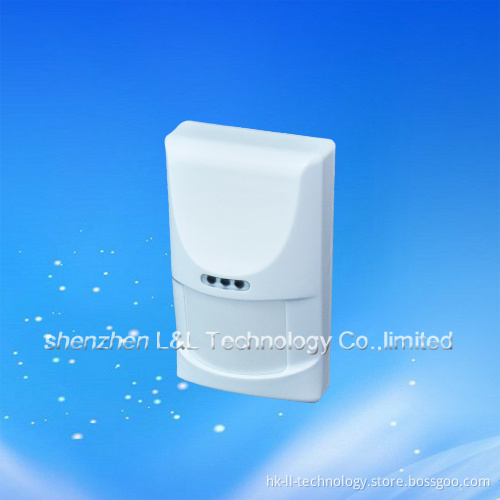

1*PIR sensor

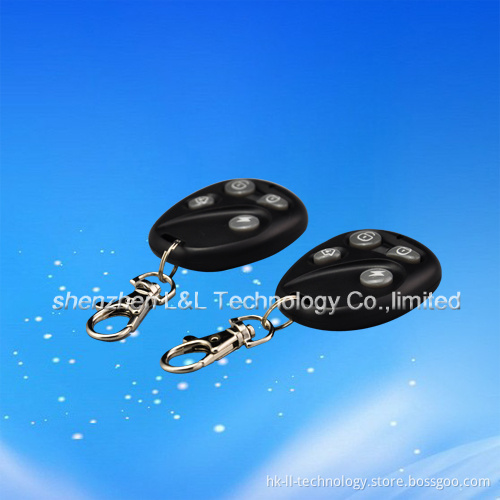

1*Remote controller
1*siren
1*manual
1*adaptor
