Product Description

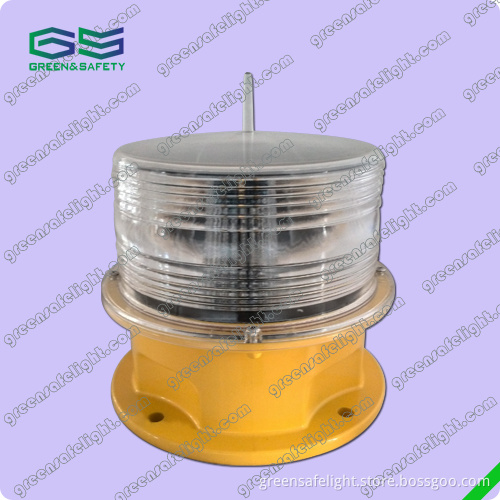

GS-LS/P-2 LED Marine Lanterns

Advantages
1. 5 to 8 Nautical Miles (Tc=0.74)
2.PC material with good impact protection strength, thermal stability, high transmittance.
3. Bird spike against bird drop.
4.International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
5.LED based on obstruction light last 15 times longer than traditional light source,incandescent light.
6. Major Maintenance Cost Saving,Surge protection device inside light.
7. Strong corrosion resistance, Shock and Vibrations protection and UV protection.
8.Dawn to Dusk operating:Built-in photocell can let light work automatically at night,closed during the day.
9. IP67 protection standard, Full sealing structure.

Scope of Application
GS-LS/P-2 LED Solar Powered Marine Lanterns is commonly used on both fixed and floating structures for Aids to Navigation,Buoy,Port,Ship mast,etc.

Main Parameter

1. Mode: GS-LS/P-2

2. FAA Standard: IALA

3. Visible distance:5 to 8 Nautical Miles

4. Flash rate:Flashing mode or Steady-burning mode

5. Light source: LED

6.Light intensity:75cd(5nm),150cd(6nm),270cd(7nm),500cd(8nm)

7.Light character:option 256 light characters

8.Service life of LED: 100, 000hours

9.Operating voltage: DC12V,DC24V,DC48V or AC220V

10. Power Consumption: 10W

11. Overall Size(mm): Φ220 by 233

12. Installation Size:Φ190 by M10

13. Weight: 2Kg(DC12V,DC24V,DC48V),3Kg(AC220V)

14. Emitting Color: Red,Green,Yellow(Amber),White.

15. Ambient Temperature: -55degree centigrade to +60degree centigrade

16. Wind load: 80m/s

17. Control Way: Photocell. Light can work at night automatically by photocell.

Dimension Drawing

GS-Ls/P-2 LED Marine Lanterns

Product Profile
1.Model: GS-LS/P-2
2.Applications: Applied to both fixed and floating structures.
3.Standard: IALA
4.Improve Records: None
5.Fault Records: None
6.Quantity/Delivery Day: 20 pcs / 5 Days
