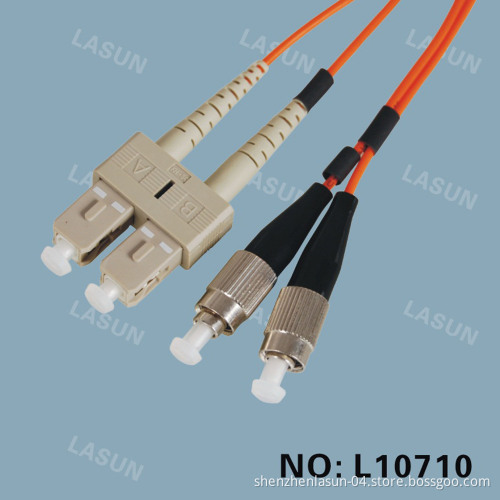

Sc-FC Mullti-Mode Duplex Fiber Optical Patch Cord (L10710)

SC-FC Milti-mode duplex fiber optical patch cord/Fiber Optic Patch Cable

SPECIFICATIONS

TRANSMISSION PERFORMANCE
ANSI/TIA/EIA-568-C. 3: Insertion and return loss (100% tested)

TRANSMISSION MEDIA
Optical fiber: 50/125- 850-nm laser-optimized multimode (OM3) optical fiber

CONNECTOR TYPES
Connector type: SC/LC PC multimode, FOCIS (ANSI/TIA/EIA-604) compliant

CONSTRUCTION
Simplex or duplex fiber cordage
Thermoplastic outer jacket (OFNR-rated)
Thermoplastic strain relief

TRANSMISSION PERFORMANCE
Bandwidth: 850 nm OFL: 1500 MHz-km
850 nm RML: 2000 MHz-km
1300 nm: 500 MHz-km
Return loss: PC ≤ 30 dB
Insertion loss: SC, LC: Typical 0.2 dB, max 0.3 dB
MT-RJ: Typical 0.3 dB, max 0.5 dB

MECHANICAL
Connector ferrule: Ceramic
SC Connector Cords
LC Connector Cords
End-face radius of curvature: 10 mm (0.39 in) < R < 30 mm (1.18 in)
Apex offset: < 50 μ M
Cable material: PVC OFNR
Cable jacket color: Aqua

ENVIRONMENTAL
Operation temperature: -20 ° C to +70 ° C (-4 ° F to +158 ° F)
Storage temperature: -40 ° C to +80 ° C (-40 ° F to +176 ° F)
Humidity: 95 %RH (non-condensing)
