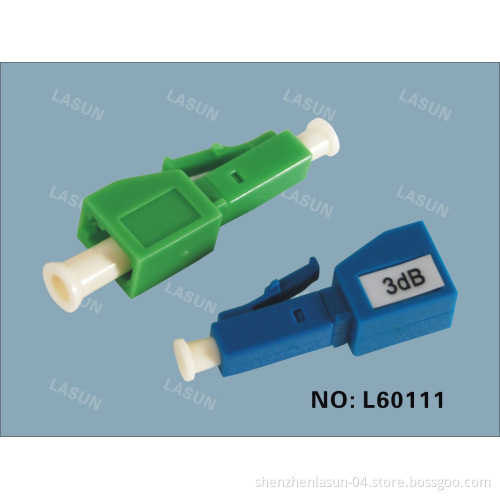

Attenuator (L60111) /Adapter

Item: Attenuator (L60111)/Adapter
P/N: LA100313015

Description:
APPLICATION
Fiber Optic Communication Systems
DWDM Equipment
Fiber Optic CATV
Local Area Networks

SPECIFICATIONS
Attenuation Range: 0-30dB
Attenuation Tolerance: ≤ 1.0dB (11dB-30dB)
≤ 0.5dB (1dB-10dB)
Available Wavelengths: 1310nm, 1550nm, 1310 nm
Wavelength Dependence: <0.3dB Change in insertion loss for 1310&1550 nm
Return Loss: ≥ 50 dB (SPC)
≥ 55 dB (UPC)
≥ 65 dB (APC)
Polarization Dependent Loss: ≤ 0.2dB
Temperature Range: -40° -80(≤ 0.2 dB in insertion loss)
Humidity Range: +/- 0.2 dB Change in 10% to 90% relative humidity range
Vibration: ≤ 0.1 dB change between 10Hz to 55Hz
Drop: +/- 0.2dB after 8 drops (3 axes) from 1.8 meter onto ahard surface

ORDERING CODE
Connector: SC ST FC LC DIN MU SMA
Fiber Mode: 9/125, 50/125, 62.5/125
Cable Size: 0.9mm, 2.0mm and 3.0mm
Fiber Quantity: Simplex or Duplex
Wavelength: 1310nm, 1550nm and 1310nm/1550nm
Jacket: PVC or LSZH
Length: Customer required
