Single Mode Fiber Optic Cable/Patch Lead/Patch Cable

Single Mode Fiber Optic Cable/Patch Cord/Patch Cable

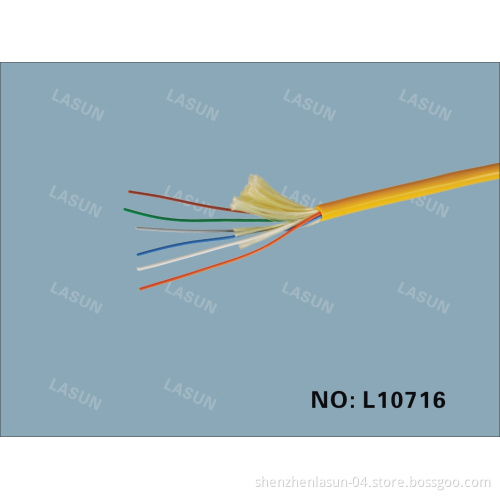

Lasun's 50 micron laser-optimized optical fibre cable is perfectly suited for the support of the 10GBASE-SX application at all horizontal work stations, riser, and short length backbone (< 300 m) locations. Multimode cables are constructed from optical fibres that are characterized for overfilled launch (OFL) and restricted mode launch (RML) bandwidth to ensure full compatibility with both LED and laser light sources. Lasun's optical fibres exhibit virtually zero differential mode delay (DMD) at the core so that mode conditioning launch cords are not required to support VCSEL applications such as Gigabit and 10 Gigabit Ethernet.

Highlights
900µ M tight buffer
250µ M coated optical fibre
Length markings in 2 ft. Increments
Available in OFNR, OFNP and LS0H constructions
Jacket material is lead free
RoHS Compliant
PACKAGING
Reels

Standards Compliance
ISO/IEC 11801: 2002 OM3
ANSI/TIA/EIA-568-B. 3
ANSI/TIA/EIA-568-B. 3-1
ANSI/TIA-598-C
Telcordia GR-409-CORE
LSOH: IEC 60332-1, IEC 61034, IEC 60754
OFNR: Communications Type OFNR (UL) and CSA FT4 c(UL)
TIA-492AAAC laser bandwidth DMD specification
IEC 60793-2-49 and TIA/EIA 455-220 DMD measurement test procedures
