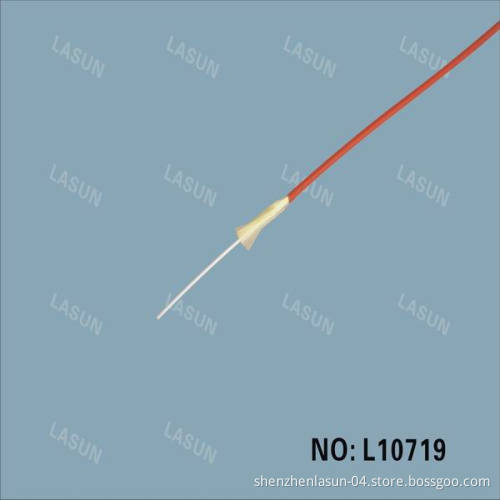

Singlemode Optical Fibre Cable (LA121102) /Fiber Cable

Singlemode Optical Fibre Cable (LA121102)
Lasun's singlemode optical fibre cable is perfectly suited for the support of extended distance 10 Gigabit Ethernet (> 550m) applications as well as emerging applications, such as 40 GB/s Synchronous Optical Network (SONET), that will operate at speeds beyond 10GB/s. Singlemode cables are constructed from optical fibres that exhibit low and stable insertion loss performance over the entire operating range (including the 1400 nm "water peak" band) to ensure compatibility with coarse wavelength (CWDM) and dense wavelength (DWDM) applications.

Highlights
900µ M tight buffer
250µ M coated optical fibre
Length markings in 2 ft. Increments
Available in OFNR, OFNP and LS0H constructions
Jacket material is lead free
RoHS Compliant
Packaging
Reels
Standards Compliance
ISO/IEC 11801: 2002 OSI
ANSI/TIA/EIA-568-B. 3
ANSI/TIA-568-C
Telcordia GR-409-CORE
ITU G. 652-C
IEC 60793-2 Type B1.3
LSOH: IEC 60332-1, IEC 61034, IEC 60754
OFNR: Communications Type OFNR (UL) and CSA FT4 c(UL)
OFNP: Communications Type OFNP (UL) and CSA FT6 c(UL)
