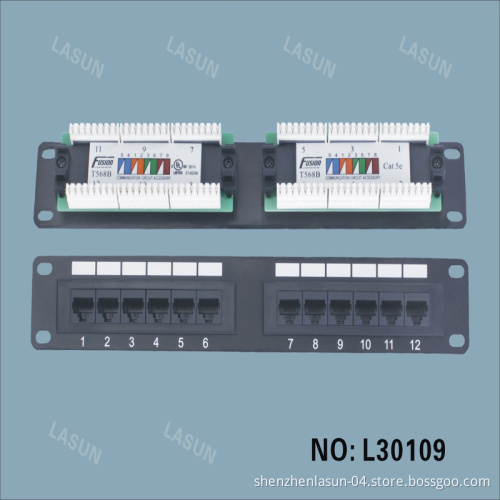

CAT6 12 Ports Mini Patch Panel

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Western Union

Product Description

Mini Wall-mounted type Patch Panel

Features:
Compatible with both 110 and Krone punch down tools
Supports 22 to 26 AWG stranded and solid wire
For use with unshielded twisted pair (UTP) Cat6 network cable
Cat6 performance is in compliance with the ANSI/TIA/EIA 568 B. 2-1 standard
Ideal for Ethernet, Fast Ethernet, and Gigabit Ethernet network applications
Connects RJ-45 ports to a network
Labels on front enable each port to be named
Color coded label on back offers both EIA/TIA 568A & 568B wiring.

Description:
Cat6 wall mount patch panel guarantees compatibility with all networks. Color coded for both EIA/TIA 568A & 568B installations. Panel comes with 110 type termination block. This 12 ports panel effortlessly mounts to a wall or desk with brackets. Mounting bracket is provided.

Electrical Characteristics:
Current rating: 1.5A max
Voltage rating: 150V
Contact resistance: 500mOhm
Dielectric withstand voltage: 1000V AC RMS, 60hZ/1min

Packing:
Cat6 Mini Patch Panel
With 2 mounting screws
Packing Details:
Each unit in a individual inner box
