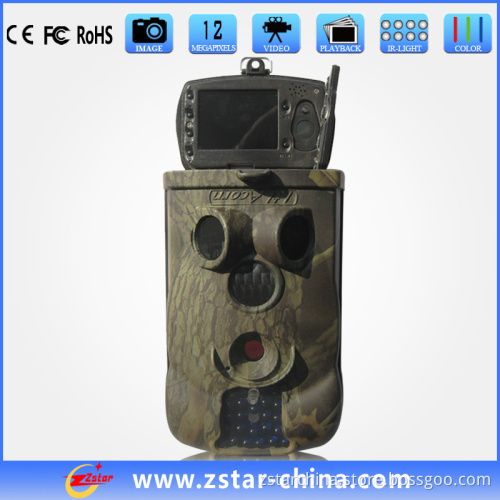

HD 12MP 940nm 3PCS PIR Sensor Infrared Trail Camera Trap with CE FCC & RoHS (ZSH0366)

Producy Information:

940NM Blue color LED invisible by humans eyes,
1, HD MC 12MP Hunting camera
2, 940nm blue LED invisible IR to human eyes, night distance: 42 Feet/13 Meters
3, vide: 1440X1080: 15 fps; 1280X720: 30fps; 640X480: 30fps;
4, 3PCS PIR sensor,
5, 2.0incn LCD,
6, trigger time 0.8s,
7, operation temperature from -30C to 70C.
8, three model, Camera, video and camera+video,
9, support to 32GB SD card,
10, time lapse function,
11, SD Card cycle Save,
12, 12PCS AA battery,
13, Multi-language, English, Finland, Germany...(can upgrade to MMS function if purchase MMS module)


Model Parameters
Image Sensor5 Mega Pixels Color CMOSYes
Max. Pixel Size2560x1920Yes
LensF=3.1; FOV=52° ; Auto IR-CutYes
IR Flash850nM: 82 Feet/25 Meters, 940nM: 42 Feet/13 MetersYes
LCD Screen40.8x30.6mm(2.0"); 960(RGB)*240DOT; 16.7M ColorYes
Operation Keypad6 KeysYes
MemorySD Card (8MB ~32GB)Yes
Picture Size5MP/12MP/2MP = 2560X1920/4000X3000/1600X1200; Yes
Video Size1440x1080: 15 fps; 1280x720: 30fps; 640x480: 30fps; Yes
PIR SensitivityHigh/Normal/LowYes
PIR Sensing Distance82ft/25m(Below 77° F/25° C at the Normal Level)Yes
Prep PIR Sensing AngleLeft and right light beams form an angle of 100° ; Each lens covers 10° Yes
Main PIR Sensing Angle35° Yes
Operation ModeDay/NightYes
Trigger Time0.8Second (When using the 2G SD card)Yes
Trigger Interval0sec. - 60min; ProgrammableYes
Shooting Numbers1~3Yes
Video Length1-60sec.; ProgrammableYes
Camera + VideoFirst take Picture then VideoYes
Playback Zoom In1~16 TimesYes
Time StampOn/Off; Include serial No., temperature and moon phaseYes
TimerOn/Off; ProgrammableYes
Password4-Digit NumbersYes
Device Serial No. 4 digits and 26 alphabets set by yourselfYes
Time LapseOn/Off; 1 Second ~ 24 Hours ProgrammableYes
SD Card cycle SaveOn/Off; Yes
MMS OptionsVGA=640x480; SMS; OFF, ProgrammableUpgradable
MMS Numbers"0" = Unlimited; 0 ~ 99/DayUpgradable
MMS Phone No. 1 ~ 3 Phone NumbersUpgradable
MMS E-mail0 ~ 3 E-mail addressUpgradable
SMS1~3Upgradable
Low-Battery SMS Alert"Battery Low" text alert sentUpgradable
Language settingChange Country Can Setting LanguageYes
Power Supply12xAA; Yes
External DC Power SupplyPlug Size: 4.0x1.7, 6 ~ 12V (1 ~ 2A)Yes
Stand-by Current 0.4mAYes
Stand-by Time4-6 Months(12xAA)Yes
Auto Power OffAuto power off in 2 minutes if no keypad inputYes
Power Consumption150mA (+350mA when IR LED lights up)Yes
Low Battery Alert4.2~4.3VYes
InterfaceTV out; USB; SD Card and SIM Slot; 6V DC ExternalYes
MountingStrap; TripodYes
WaterproofIP54Yes
Operation Temperature-22~+158° F/-30 ~+70° CYes
Operation Humidity5% ~ 95%Yes
CertificateFCC & CE & ROHSYes

Sample Picture:
