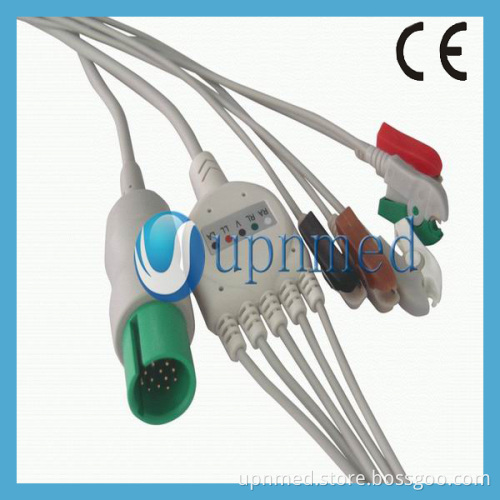

Spacelabs one-piece series 5 leadwires ECG cable

1. Spacelabs one-piece series 5 lead ECG cable with leadwires.

2. Connector: Round 17 pin

3. Compatiable with 90496 Ultraview, 90369 Ultraview, 90367Ultraview



3. Storage and transport environment: -5~+40
Operating temperature: 0~+40
Humidity
Operating/Storage/Transportation 0% to 80% non condensing Altitude
Hyperbaric Pressure 86kPa~106kPa
Biocompatibility: All patient contact materials are latex free and have been tested


4. Instrument Connectors
An extensive variety of connector solutions is available. All have flex-reliefs for durability.

5. Trunk Cables
The 3 meter (10 ft) patient cable assembly uses shielded, low noise cable to minimize tribo-electric noise and electrical nterference. Flex-reliefs at both the connector and cable yoke provide flexibility and reduce continuity breakage. These cable yokes are labeled to clearly depict both AHA and IEC color coding for quick and easy lead attachment. Part numbers and lot numbers indicate equipment compatibility and product traceability.

6. Lead wires
Low profile, insert molded snap or pinch connectors offer patient comfort and secure attachment to snap electrodes. The snap termination's ergonomic, teardrop design reduces tangling at the patient end connector. Grabber and mini clip terminations have dual sided metal contacts to provide the connection.
7. Advantages
Product Facts
Fully shielded patient cable and lead wires
High density interface allows compact size, light weight
Keyed lead wire termination to provide correct orientation
Latex-free



.
