Panel Fasteners

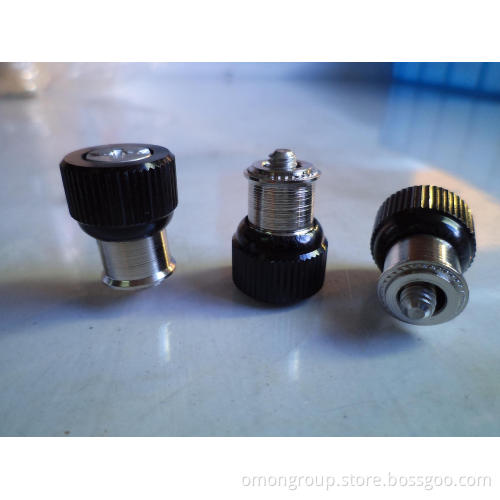

TYPES PF11, PF12, PF11M, AND PF12M PANEL FASTENER ASSEMBLIES
Shoulder on retainer provides positive stop during installation.
Available in self-clinching, flaring, or floating mounting styles.
Available with knurled or un-knurled metal cap, black metal cap, or a custom color plastic cap.

TYPE PF11 FLARE-MOUNTED ACCESS HARDWARE -
Appropriate for close centerline-to-edge applications.
Doesn't require high installation force.
Installs into any panel hardness.
Installs flush on back side of panel.

TYPE PF11 FLOATING ACCESS HARDWARE -
Compensates for mating hole misalignment.
Installs into any panel hardness.


TYPES PFC2 AND PFS2 PANEL FASTENER ASSEMBLIES -
Available in steel or stainless steel.
Meets "operator access area" requirements similar to UL 508.
Tool or finger operation.
Most sizes available in three screw lengths.
TYPE PFC2P RECESSED-HEAD, PANEL FASTENER ASSEMBLIES
Fully concealed-head for tool only access.
UL approved.
Assorted screw lengths for most applications.
TYPE PFC4 PANEL FASTENER ASSEMBLIES FOR INSTALLATION INTO STAINLESS STEEL SHEETS
Installs into stainless steel sheets HRB 88 or less.
Fully concealed-head for tool only access.
UL approved.
Assorted screw lengths for most applications.
TYPES PF50, PF51, PF52, PF60, PF61, AND PF62 LOW-PROFILE,
PHILLIPS DRIVE PANEL FASTENER ASSEMBLIES
Low-profile design satisfies many functional and cosmetic requirements.
Type PF50 with convenient large head and Phillips recess for tool or finger operation.
Available with six-lobe recess.

TYPES PF30, PF31, AND PF32 LOW-PROFILE PANEL FASTENER ASSEMBLIES
Low-profile design satisfies many functional and cosmetic requirements.
Convenient, large, slotted head for tool or finger operation.
TYPE PFHV LOW COST PANEL FASTENER ASSEMBLIES -
Low cost design.
Small, compact and low profile design for limited access areas.
Two screw lengths.
Universal slot/Phillips recess standard.
TYPES SCB AND SCBJ SPINNING CLINCH BOLT
Permanently captivates into sheets as thin as .040" / 1.02 mm and greater.
Low cost solution to replace loose hardware.
Available with jacking feature or axial float feature.
Appropriate for close centerline-to-edge applications.
TYPE PF10 FLUSH-MOUNTED PANEL SCREW COMPONENTS -
Type PS10 screw head is flush in sheets as thin as .125" / 3.2 mm.
Type PS10 screw remains captive in retainer when disengaged.
Type PR10 retainer and F10 receptacle nut is for use in sheets of HRB 70 or less.
Type N10 nut is for use in sheets of HRB 80 or less.

TYPES PTL2 AND PSL2 SPRING-LOADED PLUNGERASSEMBLIES
Reverse side of sheet is flush when plunger is retracted.
Quick lockout feature holds plunger in retracted position.
For use in sheets of HRB 80 or less.
Available as Type PSL2 without lockout feature on special order.
