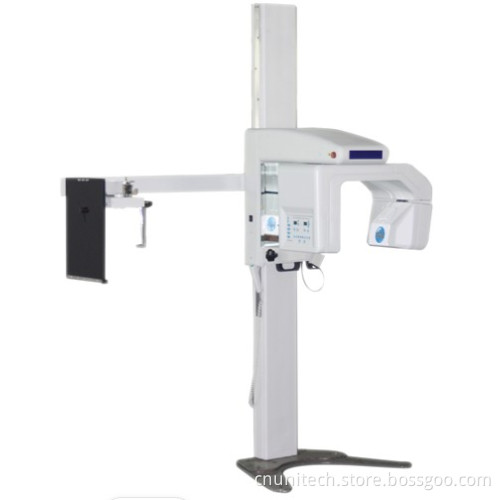

Digital Panoramic Dental X-ray Machine

Digital Panoramic Parameters

Power Supply: 220V, 50/60Hz, 10A (can be adjusted as customer's require)
Mains Resistance: <1.5ohm at 220 V
X-ray generator: High frequency dc at 20 kHz
Anodic Voltage: 60-86 kV, Constant Potential Anodic Current: 4-10 mA, Direct Current
Focus size: 0.5*0.5mm Inherent Filtration: 2.5 mm Al
Column Height: 230cm Displacement: 90 cm, from 90 to 180 cm
Vertical Movement: Manual Adjustment
Patient Positioning: Manual Carriage Adjustment
Centering Light Lateral
Centering Chin rest
Reference with bite wing
Exposure time 19 s 0.2 to 3.5s(12 steps) mAs from 2 to 35
Projections: Adult(19 s) Antero Posterior
Children(16 s)
Half left(10 s) Latero lateral
Half Right(10 s ) with soft tissue filter
Frontal Teeth(12 s)
TMJ opened and closed
Mouth(4*3.2s)
Frontal Sinuses(18 s)
Cooling pause: Automatically controlled, automatically controlled,
6 min max 60 s max

Cephalometric Function Parameters

Anodic Current: 10 MA
The Product of Anodic Current and Time is from 2mAs to 35mAs, divided into 12 block.
Size of Cassette: 18cm * 24cm
