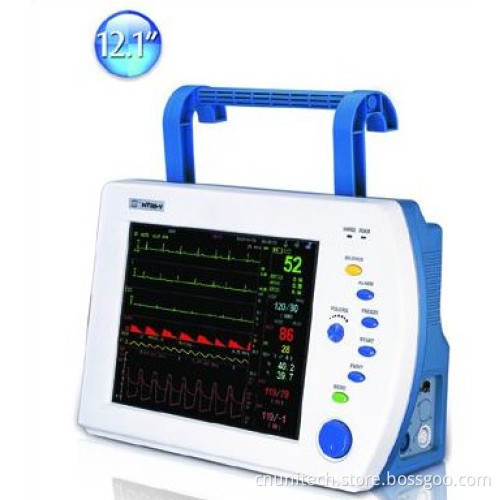

Vet Patient Monitor Unt-3BV

UNT-3BV veterinary multi-parameter patient monitor is a streamlined, portable, compact and lightweight product, making it ideal for vet offices, clinics, animal surgical centers. It is suitable for small and medium-size animal (cat, dog, pig, sheep, etc. )

Key Specifications / Special Features:

12.1'' High Resolution Color TFT LCD
1-8 Channel Waveform Display
7 Leads ECG Waveform Display; ST Segment Analysis
Accurate and Reliable During Low Perfusion and Motion
Defibrillation and ESU Protection
Venous Punch
Flexible Parameter Configuration
Suitable for Cats, Dogs, Horse and Similar Sized Animals

Options: Thermal recorder, CO2, 2-IBP

ECG:
ECG Cable: 5 leadwires
Lead Section I, II, III
Gain(mm/mv): 1/4, 1/2, 1, 2, 4
Frequency Response: Diagnosis 0.05~100HZ
Monitor 0.5~40HZ
Surgery 1.0~25HZ
Sweep Speed(mm/mv): 12.5, 25, 50
Heart Rate Range: 0~350bpm
Heart Rate Accuracy: ± 1 %

Respiration Rate
Measurement range: 0 - 120 BPM
Accuracy: ± 1 BPM or 5 %(choice max)
Resolution: 1 BPM

CO2
Measurement range: 0 % - 10.0 %
Accuracy: ± 2 mm Hg or 5%(choice max)
Response time: 180 ms

IBP
Channel number: 2ch
Range: -40 - +330mmHg
Accuracy: ± 45mmHg or ± 4%(choice max)
Resolution: 1mmHg

Patient Range:
Horse, Dog and Cat

Pules Oximetry
SPO2 measurement range: 0 - 100 %
Accuracy: 70%~100%± 2%(Horse and Dog)
70%~100%± 3%(Cat)
0~69% Unspecified
Low Perfusion: ≤ 0.3%
Low Perfusion Accuracy: 70%~100%± 2%(Horse and Dog)
70%~100%± 3%(Cat)
0~69% Unspecified

Pulse Rate:
Range: 25~400bpm
Accuracy: ± 3bpm

NIBP
Measurement Method: Oscillometric
Operation Modes: Manual/Automatic/Continuous
Measurement Unit: MmHg/kPa selectable
Measurement Range; Systonlic, Diastolic and Mean
Measurement Range; 10-285mmHg
Accuracy; ± 3mmHg or 2%(choice max)
Alarm; Systolice, Diastolic and Mean
Over-pressure Protection; Yes
Resolution; 1mmHg.

Temperature;
Scale; ° C and ° F selectable
Measurement Range: 25-45 ° C or 77-113 ° F
Accuracy: ± 0.2 ° C or ± 0.3 ° F
Alarm Range: 27-42 ° C

Options:
Thermal Recorder, CO2, 2-IBP

Standard Configuration:
ECG, RESP, NIBP, SpO2, 2-Temp, Battery
