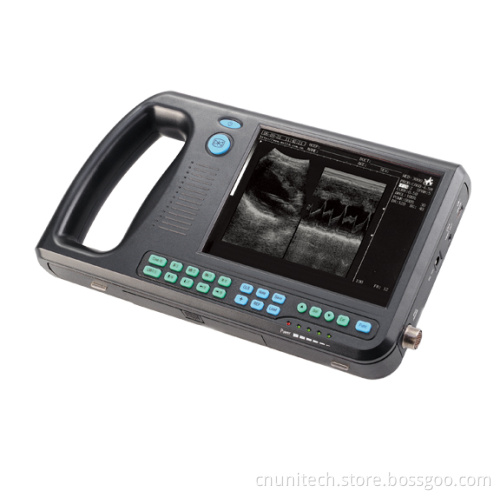

Vet Digital Ultrasound Scanner (UNT-3000V)

Vet ultrasound scanner

Description:
Main Features:
Palmsmart UNT-3000 is only 1.3KG, is distinguishable by its bright and clear image quality. The interchangeable probes offer a wide range of diagnostic applications. This scanner is a cost effective solution for family doctors, veterinary scanning. The complete software and the high product versatility are available in it.

Technical Specification:
-Scanning Method: Convex, Micro-convex, Linear, rectal

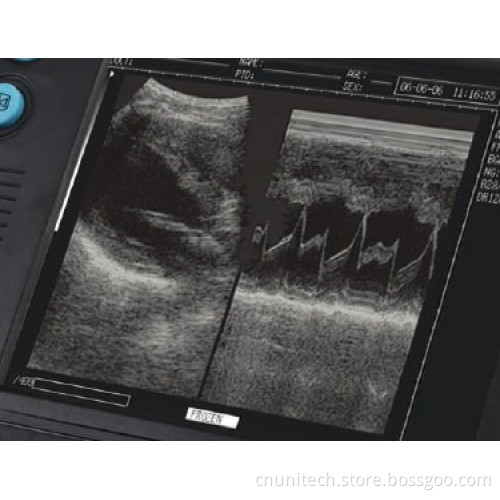

-Display Mode: B, B+B, B+M, M
-Gray Scale: 256 levels
-Monitor: 6.4 inch TFT color LCD
-Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
-128 frames for cine-memory
-32 image permanent storage
-Image magnification: × 1.0, × 1.2, × 1.5, × 2.0 times
-4 focusing combination selectable
-4 different coded-color available
-15 difference kinds of body marks with difference calipers.

Measurements: Distance, circumference, area, volume, EF rate, heart rate
OB Measurements: Equine---CA(GSD) Bovine---GA (BL, SL, HL)
Swine---GA (HL) Sheep---GA (USD)
Cat---GA, EDD (HD, BD) Dog---GA, EDD (GSD, CRL, HD, BD)
-Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
-PAL-D/NTSC output
-Mouse interface

Probes:
1)3.5MHz Convex Probe
Frequency range: 2.5MHz, 3.5MHz, 5.0MHz
Application: Abdomen, GYN, OB, Urology

2)7.5MHz Linear Probe
Frequency range: 6.5MHz, 7.5MHz, 8.5MHz
Application: Small Parts

3)5.0MHz Micro-Convex Probe
Frequency range: 4.5MHz, 5.0MHz, 5.5MHz
Application: Pediatric, Cardiac

4)7.5MHz rectal Linear Probe
Frequency range: 6.5MHz, 7.5MHz, 8.5MHz
Application: Rectal

Standard configuration use:
6.5MHz rectal linear probe(Frequency range: 6.5MHz, 7.5MHz, 8.5MHz)
SP-3 power adapter
Mouse

Options:
5.0MHz micro-convex probe(Frequency range: 4.5MHz, 5.0MHz, 5.5MHz)
3.5MHz convex probe (Frequency range: 2.5MHz, 3.5MHz, 5.0MHz)
7.5MHz HF linear probe(Frequency range: 6.5MHz, 7.5MHz, 8.5MHz)
6.5MHz rectal linear probe(Frequency range: 6.5MHz, 7.5MHz, 8.5MHz)
Sony Video Printer
Extra battery
Car charger
