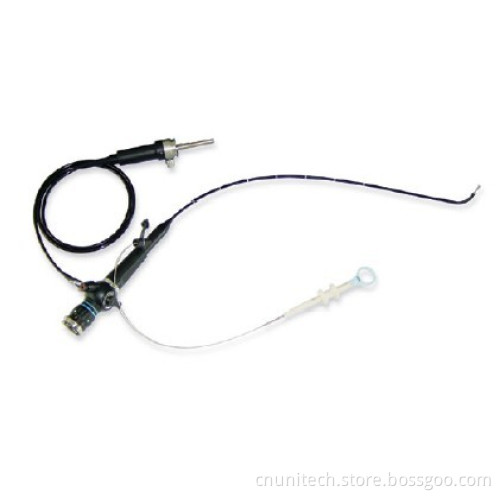

Vet Fiberscope (UNT-5)

Vet Fiberscope for small animals

UNT5 is a thinner diameter of insertion tube and wholly water-proofed high class broncho-fiberscope. It has only 5 mm of outer diameter insertion tube and good compatibility with the cold light Source system (OES)

---Angle of View Field 85° Forward viewing
---Depth of View Field 3-50 mm Fixed focus
---Outer Diameter of Insertion Tube: Φ5 mm
---Outer Diameter of Distal End: Φ5.8 mm
---Range of Tip Bending Up≥ 130° , Down ≥ 90°
---Inner Diameter of Biopsy Channel Φ 2.0 mm
---Working Length 550 mm
---Total Length 790 mm
---Waterproof Yes
---Purge of Tube Whole Yes

Light Source:

Type: Halogen
Illumination: ≥ 1800000Lx
Color Temperature: 3200K 0-10%
Air pump pressure: 30-80kPa
Air Capacity: 4L-10L/min
