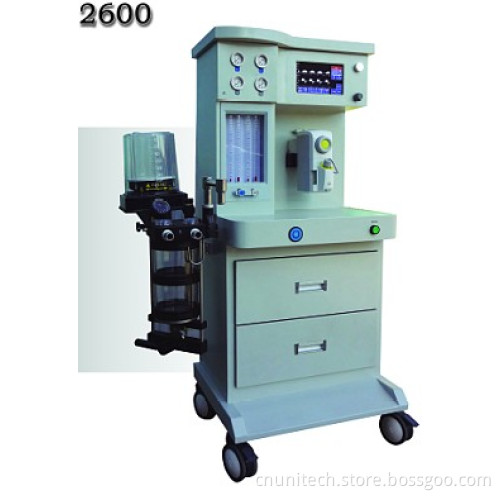

Trolley Anesthesia Machine (UNT-2600)

Special Feature

Patient type: Adult, Pediatric
Driven mode: Pneumatically driven electronically controlled
Mode: Semi-open, Semi-closed or Closed system
Anesthetic vaporizer: One vaporizer
Power supply: 220v± 10%, 50Hz± 1Hz
110v± 10%, 60Hz± 1Hz
Power consumption: ≤ 50W
Internal battery: DC12V (4 working hours)

Anesthesia ventilator

Respiration mode: IPPV, SIMV, SIGH, MANUAL
Display: 5.5' SNT screen
Waveform: P-t, V-t
Tidal volume: 50ml~1600ml
Respiratory frequency: 1~65BPM
I: E ratio: 8: 1~1: 8
Alarm parameters: High pressure alarm, Low pressure alarm, O2 source failure alarm
High pressure alarm limit: 20~60cmH2O
Low pressure alarm limit: 0~20cmH2O
Monitor parameters: Tidal volume, MV, Ppeak, PEEP, respiratory frequency, I: E ratio, Airway pressure
Safety valve pressure limit: 6 Kpa
Good air tightness, high reliability, and minor respiration impedance

Main unit

Circle absorber: Compact circle absorber
Bellow: 0~1600ml
Flow meter:
O2, N2O four-tube flow meter
O2 tube: 0L/min~1L/min~10L/min
N2O tube: 0L/min~1L/min~10L/min
O2 and N2O Linkage Device, Adjust O2 and N2O in proportion (keep O2 concentration not lower than 25%)
Oxygen FLUSH: 25L/min~75L/min
Gas source pressure:
O2: 0.25Mpa~0.65Mpa
N2O: 0.25Mpa~0.65Mpa
Gauge: Two gauges, N2O, O2
