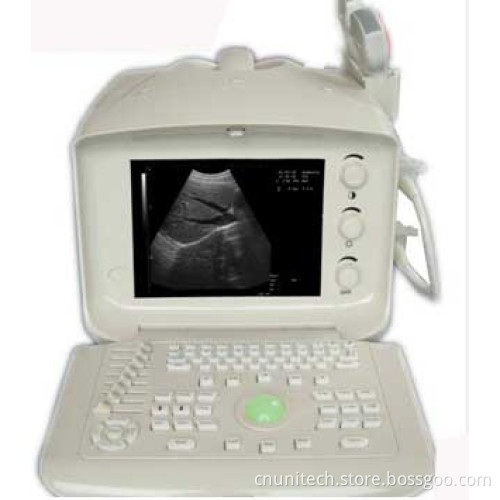

Portable Ultrasound Scanner UNT-135

Main Features:
Powerful measurement & calculation software packages
8-Segment TGC ABD Trackball adjustment
10 inch VGA monitor
OB measurements: BPD, GS, CRL, FL, AC, HC, etc
Permanent function of image store: 32 images
Back-lit keyboard
2 probe connectors
Probe automatic identification
Main Technical Specification:
Scanning mode: Convex/Linear/Trans-vaginal/Trans-rectal;
Display modes: B, B+B, B+M, M, 4B;
Scanning depth: 240mm;
Gray scales: 256;
Body marks: 33;
Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze;
Image conversion: up/down, left/right, black/white;
Function of puncture guide;
Max dynamic range>=100dB;
Detecting depth>=190mm, scanning depth>=240mm;
The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;
Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<170mm);
Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<160mm);
Gamma: 4 gray scale γ transform function;
Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination;
Built-in pseudo color processor, PAL-D and VGA video output, can connect external screen monitors, color monitors, VCRs, video image printer and other equipment.
Fixed characters and real-time clock and calendar display;
Software reset function;
Printer function: can connect laser printer and Video printer directly;
Comment: Date, Name, Sex, Age, Hospital, Annotation;
Zooming: *1.0, *1.2, *1.5, *2.0;
Port: USB 2.0, VGA, Video connector;
Wide application: abdomen, OB/GYN, urology, cardiology, small parts etc;
USB Function of image store: more than Sixteen thousand images;
Power supply: AC 110V-240V, 50Hz/60Hz;
Probe connector: 2;
USB/VGA/ ports;
Video connector;
Measurement:
General menu: Distance, Area, Volume, Angle, Ellipse;
Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight;
Heart menu: Distance, Time, Slope, Rhythm;

Standard configuration:
10 inches CRT main unit 1set;
60R/3.5MHz Convex array probe 1PC;

Options:
L40/7.5MHz Linear array probe;
20R/5.0MHz Micro-Convex array probe;
13R/6.5MHz Trans-vaginal array probe;
7.5MHz Trans-rectal probe;
Video Printer;
