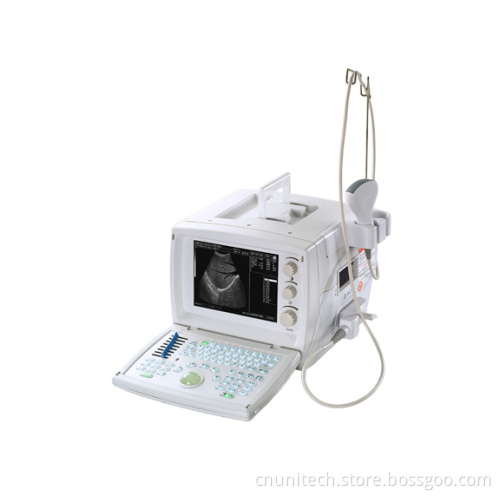

Portable Ultrasound Scanner (Unt-9618)

Main Features:

10 inch VGA monitor
Four probes acceptable: Convex, linear, transvaginal and endorectal Wide applications: Abdominal, OB/GYN, Urology, Cardiology, Small Parts examination etc.
3 step multi-frequency
Measurement: Distance, circumference, area, fetal weight, fetal heart Rate
OB measurments: BPD, GS, CRL, FL, AD, HC, AC
15 body marks
Gestation Age: 4th-43rd week
4-step zooming: X1.0, x1.2, x1.5, x2.0 with scroll-up depth control
1 probe connector(standard), can be updated to 2-probe connectors.
(Optional)

Technical Specification:

Scanning mode: Convex/Linear
Display modes: B, B+B, B+M, M
Scanning depth: 220mm
Gray scales: 256
Cine-loop: 186 frames
Image permanent storage: 20 frames
Image magnification: × 1.0, × 1.2, × 1.5, × 2.0
Image conversion: Up/down, left/right, black/white
Zoom: 2 times both in real-time and frozen
Frame correlation: Three levels to adjust (B\B+B mode)
Electronic focuses: 4-sector dynamic
Depth scroll up in B and B+B modes
Resolution Lateral: ≤ 2mm, axial≤ 1mm
Body marks: 15
Measurement: Distance, circumference, area, heart rate, EDD
Comment: Date, name, sex, age, hospital, annotation
Coded-colors: 7
Video output: PAL-D, ACE, Noninterlace, VGA
Monitor: 10 inch VGA
Power Supply: 100V~130V/220V~240V, 50/60Hz
Weight: 11.5 Kg(including probe)
Dimensions(mm): 353x315x253
Packing dimensions(mm): 430× 390× 410

Standard configuration:

C1-2/60R/3.5MHz Multi-freq Convex Probe

Options:

1). L4-1/7.5 MHz Multi-freq Linear Probe
2). EC3-1/13R/6.5 Multi-freq MHz Convex Probe
3). EL1-1/7.5 MHz Multi-freq Rectal Linear Probe
