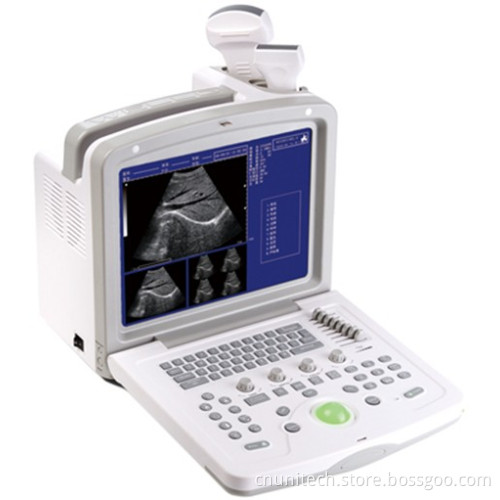

Portable Ultrasound Scanner (UNT-160)

Main Features:

Windows XP operation system based
4 sets of scroll menus mouse control friendly
Ultrasound Work-Station managing system
Powerful measurement & calculation software packages
Patient data managing system
THI(tissue harmonic imaging)
4X images
Pseudo color
Dicom 3.0

Technical Specification:

Scanning mode: Convex/Linear/Micro-convex
Display modes: B, B+B, B+M, M, 4B
Scanning depth: 40mm-240mm
Gray scales: 256
Cine-loop: ≥ 500 frames
Image permanent storage: ≥ 1000 frames
Hard disk: ≥ 80G
Image conversion: Up/down, left/right, black/white
Local zoom: 6 times both in real-time and frozen
Pseudo color: 10
Measurement: General, Gynecolorgy, ObstetricGynecolorgy, Cardiac, Urology,
Miniorgan, Orthopedics
Probes selectable: Convex, linear, micro-convex, transvaginal and dorectal
Port: PAL-D, XGA, RS-232, USB2.0, DICOM3.0
Monitor: 12 inch LCD
Body marks: 40
Comment: Pid, date&time, name, sex, age, doctor, hospital, annotation, ...
Wide application: Abdomen, OB/GYN, urology, cardiology, ...
Power supply: AC 110V~240V, 50Hz/60Hz
Probe connector: 2

Standard configuration:

60R/3.5MHz Convex

Options:
L40/7.5MHz Linear
20R/5.0MHz Micro-Convex
13R/6.5MHz Transvaginal Convex
10R/6.5MHz Transvaginal Convex
L40/7.5MHz Endorectal Linear
Video Printer
Biopsy bracket
Cart
