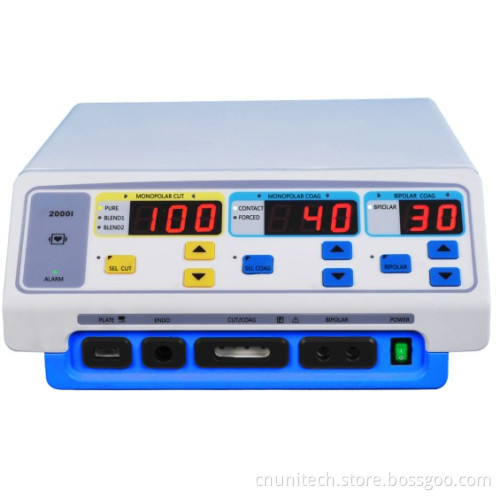

Electrosurgical Generator (LCD)

Highest output: 300W

Six working modes:
Monopolar: Pure cut, blend1, blend2, , contact coagulation, forced coagulation
Bipolar: Bipolar coagulation

The electrosurgical generator is used to control bleeding and surgical cutting in all general and open surgical procedures

Touch control panel, three-way power output, with different audible and visual indication during the process of outputting.

Patient return electrode monitoring system and Power Peak System that provides surgeons with improved performance at Lower power settings, minimizing the risk of tissue damage.

Applicable for Prostate Vaporizing Surgical Operation(TUR), perfectly used under water. The electrosurgical generator can be cooperated with, endoscope and laparoscope

Pencil Remoting Output. The output power can be controlled by the remoting control pencil.

Technical Specifications
Power: 220V± 22V, 50Hz± 1Hz(110V± 11V, 60Hz)
Operating frequency: 416KHz
Power rating: 1100VA± 10%
Six working modes:
Monopolar Cut
A) Pure cut: 1W~300W( Load 800Ω )
B) Blend1: 1W~250W(Load 800Ω )
C) Blend2: 1W~150W(Load 800Ω )
Monopolar Coag
D) Contact Coag: 1W~80W( Load 800Ω )
E) Forced Coag: 1W~120W( Load 800Ω )
Bipolar
F) Bipolar Coagulation: 1W~50W( Load 200Ω )
Power Consumption: ≤ 1100VA

Configuration Sheet

Electrosurgical Pencil 5pcs
Power Control Pencil 1pc
Electrosurgical Pad 10pcs
Electrosurgical pad cable 1pc
Footswitch 1set
Bipolar Forceps and cable 1set
