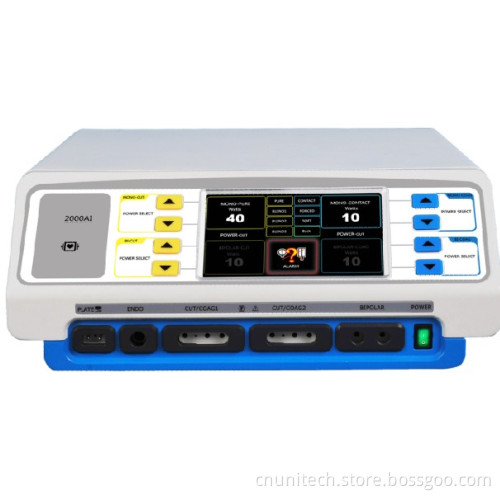

Electrosurgical Generator (LCD) (Unt-2000ai)

Highest output: 400W

Nine working modes:
Monopolar: Pure cut, blend1, blend2, blend3, spray coagulation, forced coagulation, soft coagulation
Bipolar: Bipolar coagulation, bipolar cut

The electrosurgical generator is used to control bleeding and surgical cutting in all general and open surgical procedures

Touch control panel, three-way power output, with different audible and visual indication during the process of outputting.

Patient return electrode monitoring system and Power Peak System that provides surgeons with improved performance at Lower power settings, minimizing the risk of tissue damage.

Memory function: Nine frequently used settings can be preset.

Applicable for Prostate Vaporizing Surgical Operation(TUR), perfectly used under water. The electrosurgical generator can be cooperated with, endoscope and laparoscope

Pencil Remoting Output. The output power can be controlled by the remoting control pencil.

Technical Specifications

Power: 220V± 22V, 50Hz± 1Hz(110V± 11V, 60Hz)
Operating frequency: A)Monopolar: 512kHz b) Bipolar: 1024kHz
Power rating: 1100VA± 10%

Nine working modes:
Monopolar Cut
A) Pure cut: 10W~400W( Load 800Ω )
B) Blend1: 1W~300W(Load 800Ω )
C) Blend2: 1W~200W(Load 800Ω )
D) Blend3: 1W~150W(Load 800Ω )
Monopolar Coag
E) Spray Coag: 1W~100W( Load 800Ω )
F) Forced Coag: 1W~120W( Load 800Ω )
G) Soft Coag: 1W~120W( Load 800Ω )
Bipolar
8) Bipolar Coagulation: 1W~70W( Load 100Ω )
9) Bipolar Cut: 1W~120W( Load 100Ω )
Power Consumption: ≤ 1100VA

Configuration Sheet

Electrosurgical Pencil 5PCS
Electrosurgical Pad 10PCS
Electrosurgical pad cable 1PC
Footswitch 1set
Bipolar Forceps and cable 1set
