190/200/210W Solar Panel Cell/ Solar Panel Module Cell Applicable for on-Grid Utility Systems/on-Grid Commercial Systems

190/200/210W Solar Panel Cell/ Solar Panel Module Cell applicable for On-grid utility systems/On-grid commercial systems
Applications:
1. On-grid utility systems
2. On-grid commercial systems
3. Off- grid ground mounted systems
Features:
1. High conversion efficiency based on innovative photovoltaic technologies
2. High reliability with guaranteed +/-3% power output tolerance
3. Withstands high wind-pressure and snow load, and extreme temperature variations
Quality and Safety
1. Rigorous quality control meeting the highest international standards
2. ISO 9001: 2000( Quality management system) manufacturing world class products
3. UL listing: RoHS, Class c fire rating, coformity to CE
Solar cell: Mono crystalline 156X156mm
Maximum power (Wp): 190/200/210W
Open· Circuit Voltage: 33/33.4/33.6V
Optimum Operating Voltage: 26/26.2/26.4V
Short Circuit Current: 7.89/8.12/8.33A
Optimum operating current: 7.31/7.63/7.95A
Operating temperature: -40 centigrade to +85 centigrade
Maximum system voltage: 600V DC
Maximum series fuse rating: 20 AMPS
Power Tolerance: 3%
Number of cells (PCS): 54=6X9PCS
Dimensions: 1482X992X35mm
Weight (kg): 16.8kg
Front Glass: 3.2mm tempered glass
Junction Box: IP67 rated
Frame: Anodized Aluminum alloy
Remarks:

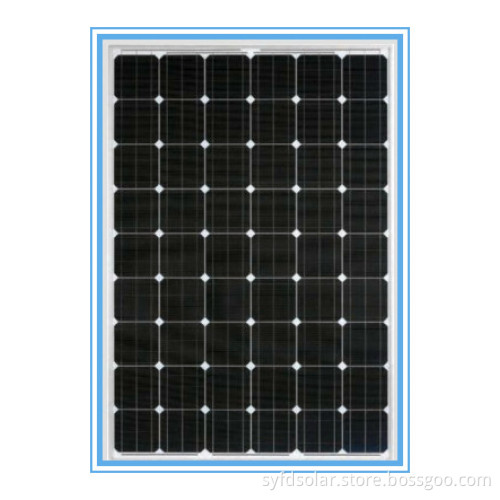

1. All solar cells are A Grade mono/poly solar cells. The pictures above are just for your reference.
2. All solar panels have passed TUV, CE, RoHS, ISO, MCS, UNBS certificates.
3. Delivery date: 15 working days
4. Payment terms: 30% T/T in advance, the rest should be paid before shipping. L/C is also acceptable
5. 5 years warranty, and 25 years working life.
6. MOQ: 20PCS
Packaging & Delivery
Packaging Details: Carton, wooden box, metal cabinet pallet and customized etc.
Delivery Detail: 15 days
Company Brief:
1. We have scientific & thorough management system and standardized business & production work flow. By virtue of characteristic corporate culture and favorable welfare system, we have trained an elite team for photovoltaic area and owned related matched standardized production facilities. All of these can assure products' quality and continuously researching and development, and to meet customers' demands.
2. We have got ISO9001: 2008 QS identification, CE, RoHS, TUV, MCS identification by UK, and UNBS identification by Uganda, etc.
3. We insist on our operation principles (Customer and Quality First), most competitive price and good after services to satisfy our customers and win market share.
