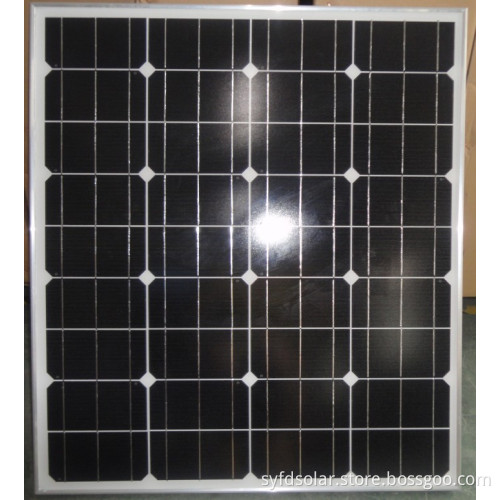

60W Monocrystalline Solar Pane with TUV, IEC, CE, RoHS Certified L/PV Panel/Solar Module/Solar Power

Maximum power (Wp) 60wp
Maximum power voltage (V) 17.4V
Maximum power current (A) 3.45A
Open circuit voltage (V) 21.2V
Short circuit current (A) 3.67A
Cell Efficiency (%) ()>17%
Number of cells (PCS) 36(4*9)
Size of cell (mm) 156*156
Size of module (mm) 760× 670× 35mm
Maximum system voltage (V) ()1000V
Temperature coefficients of Isc (%) ()+ 0.1/C
Temperature coefficients of Voc (%)()-0.38/C
Temperature coefficients of Pm (%)()-0.47/C
Temperature coefficients of Im (%)()+0.1/C
Temperature coefficients of Vm (%)()-0.38/C
Temperature Range ()`-40C------+85C
Surface Maximum Load Capacity()60m/s(200kg/sq. M)
Allowable Hail Load ()steel ball fall down from 1m height
Weight per piece (kg) 5.9KG
Junction Box Type ()PV-JB001( TUV )
Connectors and Cables Type ()With TUV certificate
Length of Cables (mm) ()900mm
Output tolerance (%) ()-0/+3%
Frame (Material, Corners, etc. ) ()Aluminum
Standard Test Conditions() 1000W/m2 AM1.5 25'C
Warranty ()5 years product warranty and 25years 80% of power output
FF (%) ()≥ 72%
