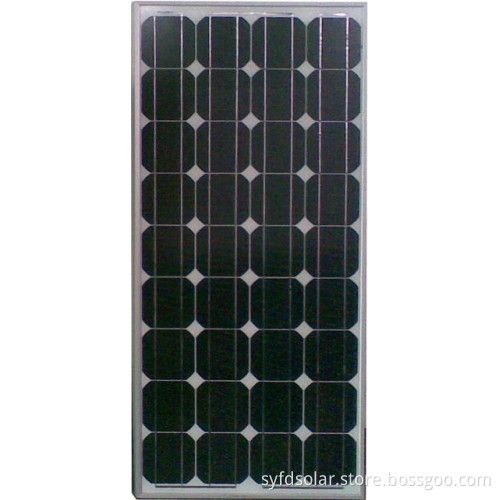

High Efficiency 90W/95W/100W Mono Solar Panel for off-Grid (SYFD-M100W)

Technical Dataspecification:
Characteristics 100W
Maximum power at STC (Pmax) 100Wp
Open-Circuit Voltage(Voc) 18.00V
Optimum Operating Voltage(Vmp)21.60V
Short-Circuit Current (Isc) 6.14A
Optimum Operating Current(Imp) 5.55A
Module Efficiency 15.50%
Solar Cell Eficiency 18.75%
Operating Temp-40º C to +85º C
Maximum System Voltage 1000VDC
Seriec Fuse Rating
± 3
STC: Irradiance 1000W/m² , Module temperature 25° C, AM=1.5
Solar Cell Mono-crystalline 125× 125mm (5 inch)
No. Of Cells 36PCS
Dimensions 1190*540*30mm
Weight 8kgs
Frame black or white black or white Anodized aluminium alloy (black or white contact)
WARRANTY
Operating Temp8years
Power production 90% =12 years
Seriec Fuse Rating
80% =25 years
Temperature Coefficients:
Nominial Operating Cell Temp 45± 2º C
Temp Coefficient of Pmax -(0.47 ± 0.05 ) %/º C
Temp Coefficient of Voc -(0.34 ± 0.01) %/º C
Temp Coefficient of Isc (0.055 ± 0.01) %/º C
