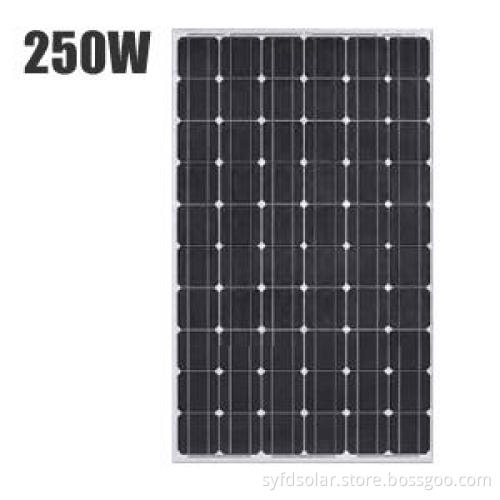

240W 250W 260W Mono Solar Panel

240W/250W/260W mono Solar panel
Specifications
white frame Solar Panel using 18% efficiency mono solar cells
Excellent Material
Robust and durable design
good for Power Plant
Parameters : SYFD-M250
Vmp:30.72V
Imp:8.14A
Voc:37.6V
Isc:8.52A
Pmax:250W

Operating Temperature:-40~+85°C
Maximum System Voltage:1000V DC
Maximum Series Fuse Rating: 15A
Module Efficiency: 15.3%
Power Tolerance:±3%

Mechanical Characteristics
Solar Cell: monocrystalline 156*156mm(6 inches)
Dimensions:1640*992*50mm(64.95*39.05*2inches)
Weight:19.5KG(43.0lbs)
Front Glass: High Transparency Solar Glass 3.2mm(0.13inches)
Frame:Anodized Aluminium alloy(Siliver or Black)
Junction Box: IP 67 Rated(TUV&UL Approved)
No. of bypass diodes: 6

Temperature Characteristics:
Nominal Operating Cell Temperature(NOCT): 45±2°C
Temperature Coefficient of Pmax:-0.44%/°C
Temperature Coefficient of VOC:-0.33%/°C
Temperature Coefficient of Isc:0.055%/°C

Warranty:
8 years Product warranty
10 years 90% of power output
25 years 80% of Power output
