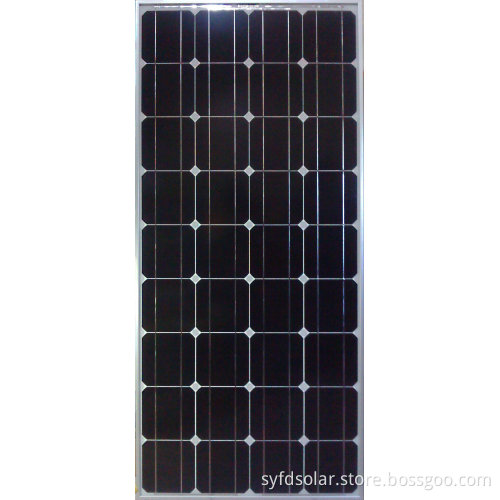

100W/90W/80W Mono /Poly Solar Panel (TUV, FCC, IEC, RoHS, ISO)

Solar Panel ( MONO & POLY ):
The TOP 1 Solar Cell
Hight Efficiency: 17~23%
Solar Panel: 80W ~ 100W
Frame: Aluminum Frame
Junction Box: TUV Certificate
Cetficates: CE, RoHS, ISO, TUV
Technical Dataspecification:
Characteristics 100W/90W/80W
Maximum power at STC (Pmax) 100Wp 95Wp 90Wp 80Wp
Open-Circuit Voltage(Voc) 18.00V 18.00V 18.00V 18.00V
Optimum Operating Voltage(Vmp) 21.60V 21.60V 21.60V21.60V
Short-Circuit Current (Isc) 6.64A 6.32A5.64A 5.33A
Optimum Operating Current(Imp) 5.55A 5.28A 5.05A 4.43A
Module Efficiency 15.10% 15.55% 15.25% 15.75%
Solar Cell Eficiency 15.75% 16.00% 16.50% 17.00%
Operating Temp -40º C to +85º C
Maximum System Voltage 1000VDC
STC: Irradiance 1000W/m² , Module temperature 25° C, AM=1.5
Solar Cell Mono-crystalline 125× 125mm (5 inch)
No. Of Cells 36PCS
Dimensions 1 200*540*30mm
Weight 8kgs
Frame black or white black or white Anodized aluminium alloy (black or white contact)
WARRANTY
Operating Temp 8years
Power production 90% =12 years
Seriec Fuse Rating 80% =25 years
Temperature Coefficients:
Nominial Operating Cell Temp 45± 2º C
Temp Coefficient of Pmax -(0.47 ± 0.05 ) %/º C
Temp Coefficient of Voc -(0.34 ± 0.01) %/º C
Temp Coefficient of Isc (0.055 ± 0.01) %/º C
Quality and Safety:
Rigorous quality control meeting the highest international standards
ISO 9001: 2000 (Quality Management System)
Manufacturing world class products
