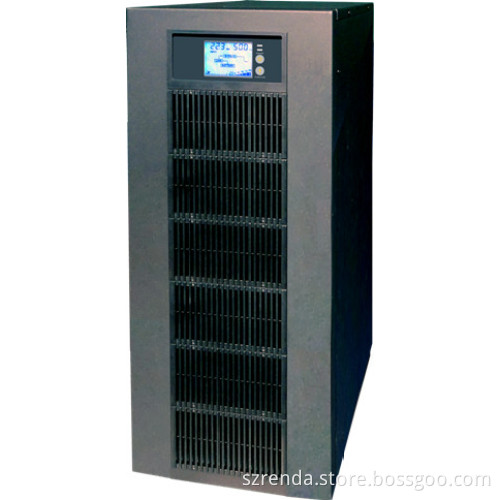

Be-RM Series High Frequency UPS-10/15/20kVA

Main Features
The latest DSP design make protection more
Speedy, ensure UPS more reliable
High frequency technology provide a broad
Development space for UPS power
Complete protection and high availability meet
The needs of a wide range of facility
Wide input range, advanced power factor correction,
Input power factor reach 0.99;
Output short circuit protection by using all digital
Technology;
Bypass-Inverter conversion condition control;
Sensitive peak current detection and protection to make
UPS can supply nonlinear load high ability in resisting
Cold load impact;
Advanced transformer less design and unique Energy
Saving Inverter Switching to make UPS efficiency up to
90%;
Unique low ripple charger prevent battery charing from
Overheating, prolong the battery life;
Input / output anti-interfereence design, conducted
Interference & radiation conform to safety standard;
Frequency auto sensing from 45-65Hz;
Compatible with various generators, greatly reduce the
Running cost.
Redundancy operation, further improve system reliability.
Monitoring and Network Management
LED and LCD double display UPS operating status. RS232
And SNMP slot make it possible to realize multi-
Functional, multi purpose monitoring and network
Communications.
Specification
Model
Capacity VA/Watts: BE100L31/8KW, BE150L31/12KW, BE200L31/16KW(w/o battery, long time running type)
Rectifier
Phase: 3 phase in 1 phase out
Voltage range: 304 ~ 478 Vac
Frequency: 45Hz~65Hz ( Auto tracking)
Power Factor: ≥ 0.98
Inverter features
Voltage range: 220Vac± 1%
Frequency: Mains: 46Hz≤ Input frequency ≤ 54Hz, auto Tracking;
Input below 46Hz or above 54Hz, lock output frequency at 50Hz
Battery: 50Hz± 0.2%
Waveform: Pure sine wave
DistortionTHD<3% with nonlinear load; THD<1% with linear load
Power factor: ≥ 0.8
Over load: >125% for 10 mins, then transfer to bypass or shutdown
>150% for half cycle, then transfer to bypass or shutdown
Crest ratio: 31
General features
Efficiency: >90%(AC to AC)
Switching time: 0ms
Noise suppressor: < 50dB (At 1 meter)
Working temperature: 0- 40
Environment Humidity: < 95% non-condensing
Safety standard: GB/T14715, EN50091-1/2
Parallel redundancy: Yes
DC starts: Yes
Generator compatible: Yes
Display: LED UPS operating status, inverter/bypass status, battery, load
LED UPS operating status, inverter/bypass status, battery, load
Alarm: Mains fault, battery low, overload, short circuit, UPS fault
Mute: Manual
Battery features
Type: Maintenance-free sealed lead-acid
DC Voltage: 192Vdc or 240Vdc
Noise suppressor: EMI/RFI filter
Low voltage on battery: Shut down
Output abnormal: Inverter auto lock
Communication Interface
Connect: True RS-232 communication port; SNMP(option)
Function: Status of mains and battery, mains failure, battery voltage, remote shut down,
Menu operation
Physical parameter
Dimension(W× D× H mm)10KVA/15/20KVA: 260X517X606( w/o battery, long time running type)
Weight (Kg): BE100L31/27, BE150L31/34; BE20L31/35
Back Panel for all Models
1. Output Plug
2. Input connector
3. Overcurrent protector
4. Two (2)pcs of RJ45 surge voltage and spike Voltage Protector
5. COMM1/COMM2 for parallel 6. SNMP card
7. Communication Port (RS232)
8. Ground terminal
9. Manual Bypass Switch
10. Battery connector
11. Input switch
12. Output connector
