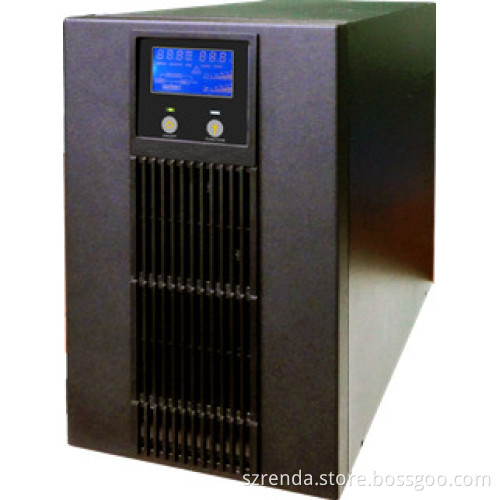

Be-RM Series High Frequency UPS-6/10kVA

ModelCapacity VA/Watts: BE60S/4800W, BE100S/8000W (Batteries built-in)BE60S/4800W, BE100S/8000W (Batteries built-in)RectifierPhase: Single phaseVoltage range: 175~ 280 VacFrequency: 45Hz~65Hz ( Auto tracking)Power Factor: ≥ 0.98Bypass voltage: 80Vac± 5% ~285Vac± 5%Inverter featuresVoltage range: 220Vac± 1%Frequency: Mains: 46Hz≤ Input frequency≤ 54Hz, auto Tracking;Input below 46Hz or above 54Hz, lock output frequency at 50HzBattery: 50Hz± 0.2%Waveform: Pure sine waveDistortionTHD<3% with nonlinear load; THD<1% with linear loadPower factor: ≥ 0.8Over load: 1~6kva: >125% for 1min bypass or shutdown; >150% for half cycle, then transfer to bypass or shutdown10kva: >125% for 10 mins, then transfer to bypass or shutdown>150% for half cycle, then transfer to bypass or shutdownCrest ratio: 31General featuresEfficiency: >90%(AC to AC)Switching time: 0msNoise suppressor: < 50dB (At 1 meter)Working temperature: 0- 40Environment Humidity: < 95% non-condensingSafety standard: GB/T14715, EN50091-1/2Parallel redundancy: YesDC starts: YesGenerator compatible: YesDisplay: LED: UPS operating status, inverter/bypass status, battery, load L CD: ( optional)UPS operating status, inverter/bypass status, battery loadAlarm: Mains fault, battery low, overload, short circuit, UPS faultMute: ManualBattery featuresType: Maintenance-free sealed lead-acidDC Voltage: 6KVA/10KVA: 192Vdc or 240VdcCharging current: 1A, 7A(For option)Protection functionShort circuit: Circuit auto protection, no outputNoise suppressor: EMI/RFI filterLow voltage on battery: Shut downOutput abnormal: Inverter auto lockCommunication InterfaceConnect: True RS-232 communication port; SNMP(option)Function: Status of mains and battery, mains failure, battery voltage, remote shut down, menu operationPhysical parameterDimension(W× D× H mm)6KVA/10KVA: 260X517X606(with battery built-in)6KVA/10KVA: 260X517X516( w/o battery, long time running type)Weight (Kg): BE60S/62, BE60L/18; BE100S/64, BE100L/20Back Panel for all Models1. Output Plug2. Input connector3. Overcurrent protector4. Two (2)pcs of RJ45 surge voltage andSpike Voltage Protector5. COMM1/COMM2 for parallel6. SNMP card7. Communication Port (RS232)8. Ground terminal9. Manual Bypass Switch10. Battery connector11. Input switch12. Output connector
