      DAM module is a new generation data acquisition and control system based on modular embedded systems. Adopting standard DIN35 rail mounting package is simple, flexible respond to various field applications. They establish networks through RS485, RS422/RS232, Ethernet and other means of communication.

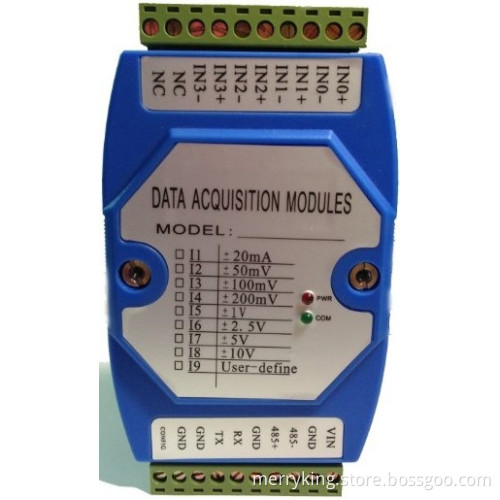

DAM-8041is the analog input series module, can simultaneously capture two differential or single-ended signal. The acquisition accuracy is 24 bit. Widely used to collecting various voltage and current signals on industrial site. Such as signals from a variety of sensors, transmitters, thermocouple can be gathered through it.
Product Features:
 Embedded real-time operating system
 Input signal range: ± 20mA, ± 10V, ± 5V,± 2.5V, ± 1V, ± 200mV, ± 100mV, ± 50mV
 Input Channels: 4 single-ended
 AD converter resolution: 24 Bit
 Measuring Accuracy: ± 0.05% (typical)
 Sampling rate: 20 times / sec (all channels)
 Wide range power supply: 8 - 40V DC
 Address / Baud rate / range configurable by the user
 Supports MODBUS RTU protocol
 ± 15KV ESD protection
 Isolation voltage: 3000V DC
 Operating temperature range: -40 degree - 85 degree
 Industrial grade plastic shell, the standard DIN35 rail mounting
Products Application:
Remote monitoring and data acquisition
Security Products and Security Project
Industrial control on site Warehousing and monitoring
Medical, industrial product development
Packaging and Material Transfer
Electronics Manufacturing
Smart home system
Food and beverage industry

Analog measurement module DAM-8041 is a four input A/D converter allowing you to measure up to four analogue signals 0-10V or 0(4)-20mA. Measured out values are send to a PC or other system by means of RS232 or RS485 line.
