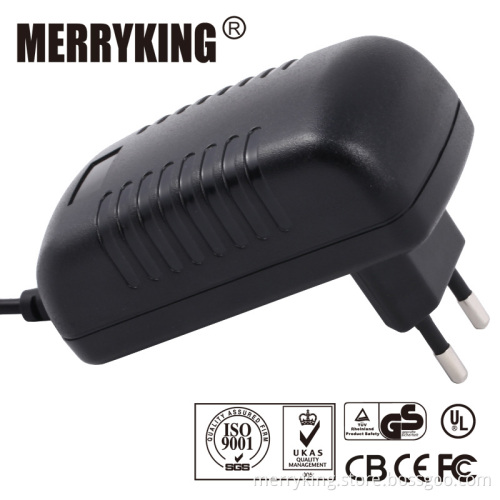

Universal Switching Power Adaptor, AC/AC Adaptor, AC/DC Adaptor

Universal Switching Power Adaptor, AC/AC adaptor, AC/DC Adaptor, power adaptor, DC adaptor

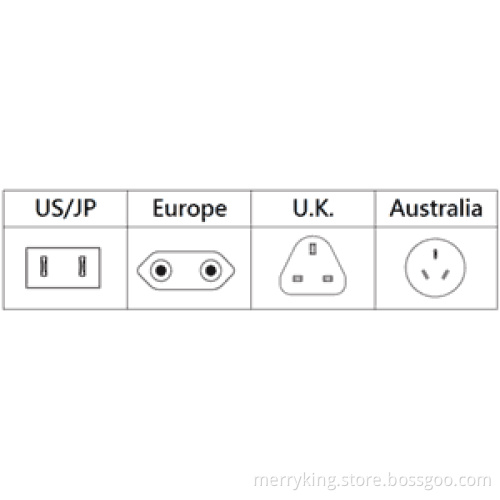

Plug-In Mains Connector US
Input Condition AC100-240V 50/60 Hz
Input Rated Voltage 100Vac-240Vac
Input Voltage Range 90Vac-264Vac
Input Rated Frequency 50/60Hz
Input Frequency Range 47Hz-63Hz
Input Current 0.35A Max
Input Inrush Current 30A Max
Rated Output Voltage & Current 3.0V-48V & 0.1A - 3.0A
Output power 20W Maximum
Output Line Regulation ± 1%
Output Load Regulation ± 5%
Output Over Shoot 10% Maximum
Output Ripple And Noise 100MVP-p Max
Output Rising Time 20ms Maximum At 115Vac
Output Hold up Time 10ms Minimum At 230Vac
No Load Power Consumption 0.3W Max At 115Vac/230Vac
Efficiency Conform to Level V (CEC/ERP/MEPS)
Protection OCP OVP OTP OLP
Dielectric Withstand Voltage 3KV 5mAnbsp; 60s
Leakage Current 0.25 mA At 230Vac
DC Plug Specification According to the customer' s requirements
Operating Temperature Range
Storage Temperature Range
