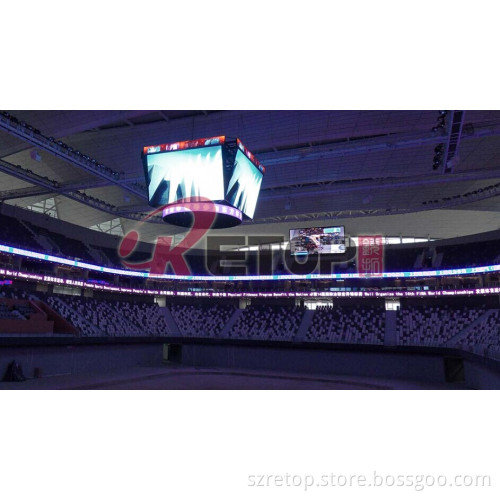

Stadium Fixed Installation Facial LED Display/LED Panel/LED Screen

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, T/T

Product Description

16MM fascia led display:
1 Featured in easy vertical stacking for taller fascias and high resolution and wide review angles, facial display solutions
2 The Retop Fascia series offers a modular outdoor and indoor display concept that allows the building up of any shape of building.
3 Key advances in wall-mounted with front access are convenient for easy installation and maintenance.

Resolution

16 mm

LAMP

LED Type

SMD3535

BOARD

Pixel configuration

1R1G1B

LED driving method

Static scan

Pixels

(W*H)

Pixel pitch

Led board size

320

(W*H*D)

MODULE

Led boards

(W*H)

Pixels

(W*H)

Module area

0.9216

m 2

Module size

960

154

(W*H*D)

Net weight

(aluminum)

(ferrum)

Power

AC220/110 ± 10%, 47~63Hz

Water proof

front IP65/ back IP54

Serviceability

Rear service

DISPLAY

Max. power consumption

≤

750

W/m 2

≤

640

W/m 2

≤

510

W/m 2

Avg. power consumption

≤

263

W/m 2

≤

224

W/m 2

≤

179

W/m 2

Max. current (208V 60Hz)

≤

4.01

A/m 2

≤

3.42

A/m 2

≤

2.72

A/m 2

Hor. viewing angle(min 50% brightness)

140°

Vert. viewing angle(min 50% brightness)

140°

Brightness

≥ 5500 cd/m 2

Pixel density

3906

/m 2

Power factor

> 0.9

Certifications

UL, CE, ETL, ROSH, CCC

Contrast ratio

3000: 1

Operating temperature

-20º C to +60º C

Operating humidity

20% to 90%

Lifetime (50% brightness)

100, 000 hours

Processing

14 bit

Colors

281 trillion

Refresh rate

2400 Hz

Frame rate

60 fps

Brightness level

Manual 100 levels, automatically 16 levels.
