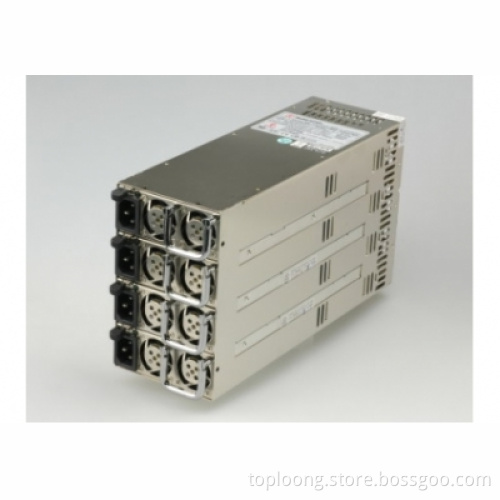

Tc-1700rvn4 (1700W N+1)

1. Model: TC-1700RVN4
2. Watts: 1700W3. Input:
VOLTAGE: 90~264VAC Full Range
FREQUENCY: 50/60Hz.
INPUT CURRENT: 26A for 115V AC, 10A for 230VAC.
INRUSH CURRENT: 60A for 115VAC, 120A for 230VAC

FEATURES:
* Redundant Power Supply
* Hot-swappable/Hot-pluggable, High-Density Redundant power supply
* Full Range AC Input.
* Efficiency: 76% Typical at full load
* Hold-Up Time: 16ms at maximum load & normal input voltage.
* OVER VOLTAGE PROTECTION.
* SHORT CIRCUIT PROTECTION.
* OVER POWER PROTECTION.
* ENVIRONMENT TEMPERATURE
Operation Temperature: 0`C to +45`C
Cooling: BY BALL BEARING DC FAN.
Storage Temperature: -20`C to 70`C
Humidity: 5% to 95%, non-condensing
*RELIABILITY
Mean Time Between Failure(MTBF)
Using MIL - HDBK -217F the calculated MTBF>100, 000 hours at 25`C.
3. Dimensions: L x W x H: 300 x 101 x 166 (mm) / 11.81 x 3.98 x 6.5 (inch)
