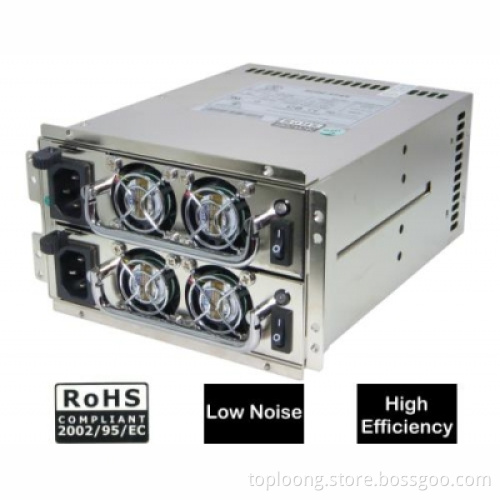

R4b-500g1V2 (500W+500W)

1. Model: R4B-500G1V2


2. Watts: 500W3. Input:
Input voltage: 90 ~ 264VAC FullRange.
Frequency: 47 - 63 Hz.
Input Current: 10A for 115VAC, 5A for 230VAC.
Inrush Current: 25A for 115VAC, 50A for 230VAC.
The Minimum efficiency of the power supply is 80% at full load and 1150Vac/60HZ input.
The minimum power factor at full load shall be 0.98 / 115V 60 Hz and 0.96 / 230V 50 Hz.
The combined total power from 5V & 3.3V shall not exceed 170W.
FEATURES:
Meet the RoHS COMPLIANT 2002/95/EC.
Meet the WEEE Directive (2002/96/EC))
Temperature Range: Operating 0`c ~ 50`c, Storage 20`c ~ 70`c
Hold up time: 16 ms Minimum at full load & Normal input voltage.
OVER POWER PROTECTION: 110~150%
OVER VOLTAGE PROTECTION
OVER CURRENT PROTECTION
SHORT CIRCUIT PROTECTION
Remote On/Off Control.
Power Good Signal: On Delay 100ms to 500ms, off delay 1ms.
Safety: To meet UL, TUV, CB, CE, FCC, BSMI, CCC.
EMI noise Filter: FCC Class B, CISPR22 Class B
3. Dimensions:
L x W x H: 199 x 150 x 86 (mm) / 7.83 x 5.9 x 3.38 (inches)
