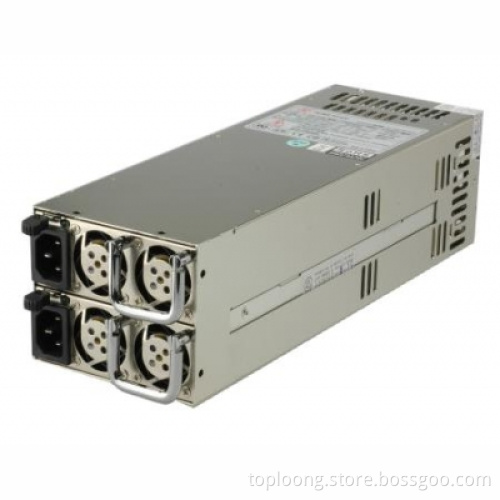

Tc-650rvn2 (650W+650W)

1. Model: TC-650RVN2
2. Watts: 650W3. Input:
VOLTAGE: 90~264VAC Full Range
FREQUENCY: 50/60Hz.
INPUT CURRENT: 12A for 115V AC, 6A for 230VAC.
INRUSH CURRENT: 60A for 115VAC, 120A for 230VAC
FEATURES:
* 2/3U Type N+1 Redundant Power Supply
* Hot-swappable/Hot-pluggable, High-Density Redundant power supply
* Full Range AC Input.
* Efficiency: 76% Typical at full load
* Hold-Up Time: 16ms at maximum load & normal input voltage.
* OVER VOLTAGE PROTECTION.
* SHORT CIRCUIT PROTECTION.
* OVER POWER PROTECTION.
* ENVIRONMENT TEMPERATURE
Operation Temperature: 0`Cto +45`C
Cooling: BY BALL BEARING DC FAN.
Storage Temperature: -20`C to 70`C
Humidity: 5% to 95%, non-condensing
*RELIABILITY
Mean Time Between Failure(MTBF)
Using MIL - HDBK -217F the calculated MTBF>100, 000 hours at 25`C.
3. Dimensions: L x W x H: 300 x 101 x 84 (mm) / 11.81 x 3.98 x 3.3 (inch)
