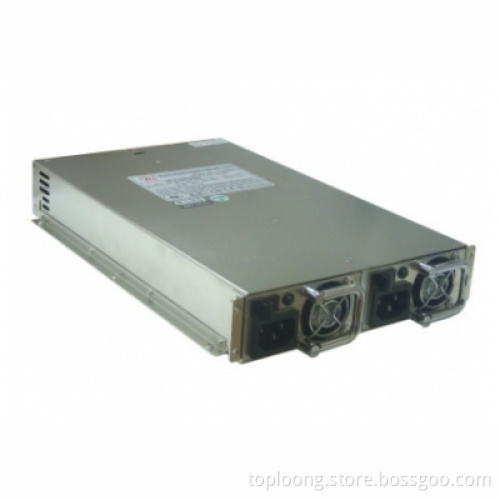

Tc-400r2uh (400W+400W)

1. Model: TC-400R2UH



2. Watts: 400W3. Input:
VOLTAGE: 90~264VAC Full Range
FREQUENCY: 50/60Hz.
INPUT CURRENT: 8A for 115V AC, 4A for 230VAC.
INRUSH CURRENT: 60A for 115VAC, 80A for 230VAC

FEATURES:
* Hot-Swappable & Power Sharing capability.
* Full Range AC Input.
* ACTIVE PFC
* Efficiency: 73at full load. (Normal Line)
* Hold-Up Time: 16ms at maximum load & normal input voltage.
* OVER VOLTAGE PROTECTION.
* SHORT CIRCUIT PROTECTION.
* OVER POWER PROTECTION.
* NO LOAD OPERATION.
* ENVIRONMENT TEMPERATURE
Operation Temperature: 0`C to 50`C
Cooling: By forced air
Storage Temperature: -20`C to 70`C
Humidity: 5 to 90non-condensing.
*RELIABILITY
MTBF OF POWER SUPPLY ELECTRONIS
100, 000 hours at full load and 25`C ambient temperature
LIFE EXPECTANCY OF FAN
40, 000 hours at 40`C
4. Dimensions:
L x W x H: 280 x 170 x 42 (mm) / 11 x 6.69 x 1.65 (inches)
