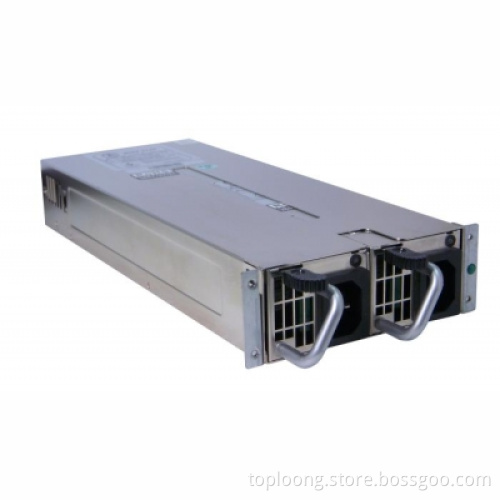

350W+350W Redundant Power Supply

1. Model: R1J-350I1H2A0

2. Watts: 350W+350W
3. Input:
VOLTAGE: 90~264VAC Full Range
FREQUENCY: 50/60Hz.
INPUT CURRENT: 7A (RMS) for 115V AC, 3A (RMS) for 230VAC.
INRUSH CURRENT: 35A for 115VAC, 70A for 230VAC

Ripple/Noise Max. (P-P): 60mv60mv120mv120mv60mV
Line Regulation: ± 1± 1± 1± 1± 1
Load Regulation: ± 5± 5± 5± 5± 5
+5V&+3.3V TOTAL OUTPUT MAX.: 145W; Power module Total output power not exceed 350W.
FEATURES:
* Hot-Swappable & Power Sharing capability.
* Full Range AC Input.
* ACTIVE PFC
* Efficiency: > 80 at full load.
* Hold-Up Time: 16ms at maximum load & normal input voltage.
* OVER VOLTAGE PROTECTION.
* SHORT CIRCUIT PROTECTION.
* OVER POWER PROTECTION.
* NO LOAD OPERATION.
* ENVIRONMENT TEMPERATURE
Operation Temperature: 0`C to 45`C
Cooling: By forced air
Storage Temperature: -20`C to 70`C
Humidity: 5 to 90non-condensing.
*RELIABILITY
MTBF OF POWER SUPPLY ELECTRONIS
100, 000 hours at full load and 25`C ambient temperature
LIFE EXPECTANCY OF FAN
40, 000 hours at 40`C

L x W x H: 260 x 106 x 41.50 (mm) / 10.23 x 4.17 x 1.63 (inches)
