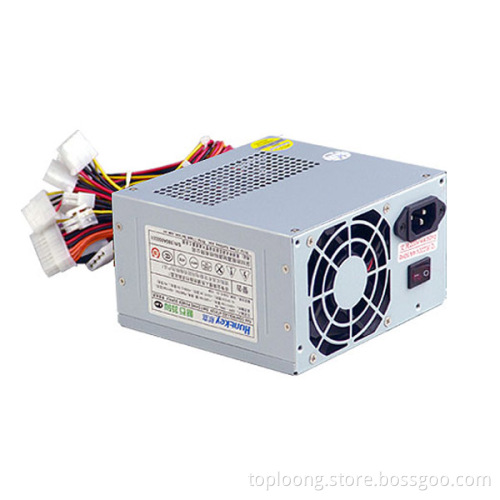

Power Supply (Panshi 355DVR)

1. Dimension: 150 x 86 x 40mm (WxHxL)
* Intel ATX12V V1.3
* Active PFC (PF>0.99)
* Certified by 80PLUS
* 85% high efficiency at typical load operation
* True-wattage rated
* Supports Intel & AMD Dual and Multi-core CPUs
* Provides four +12V rails, for stability and safety
* Supports SLI & Crossfire multi-GPU VGA card
* Low ripple & long lifetime by solid capacitor
* Low power consumption on standby (<1W when 5VSB is 0.1A)
* Excellent acoustic & thermal performance with intelligent-Thermal Fan Control Technology
* Multiple Protections function: OCP, OTP, OVP, UVP, OPP, SCP
* 100% Burn-In test & 100% Hi-Pot test
* MTBF: 100, 000 hours at 25 centidegree
INPUT SPEC.
Input voltage: 90V-264V
Input current: 5.0A (Max. )@115VAC
Input frequency: 47-63Hz
Inrush current: 80A at 230VAC cold start at 25 centidegree
OUTPUT SPEC.
Max. Output Capacity: 500W
Power factor≥ 99% (at normal input voltage and full load)
Efficiency: 85% high efficiency at typical load operation
OVP: +3.3V, +5V, +12V1, +12V2
OCP: <240VA
SCP: All output to GND
