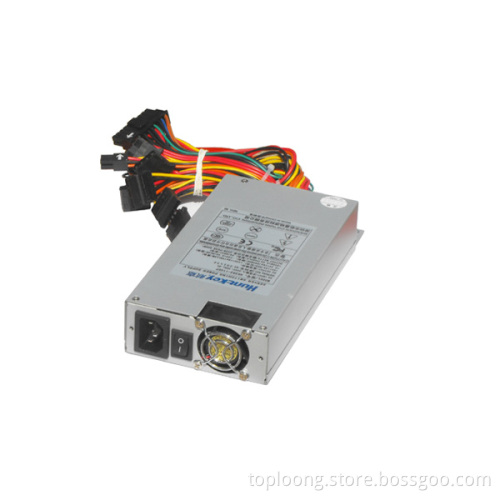

Power Supply HK353-11UEP

Dimension: 100mm (W) x 40(H) mm x 210(L) mm
* Intel ATX12V
* Active PFC (PF>0.99)
* Certified by 80PLUS
* 85% high efficiency at typical load operation
* True-wattage rated
* Supports Intel & AMD Dual and Multi-core CPUs
* Provides four +12V rails, for stability and safety
* Supports SLI & Crossfire multi-GPU VGA card
* Low ripple & long lifetime by solid capacitor
* Low power consumption on standby (<1W when 5VSB is 0.1A)
* Excellent acoustic & thermal performance with intelligent-Thermal Fan Control Technology
* Multiple Protections function: OCP, OTP, OVP, UVP, OPP, SCP
* 100% Burn-In test & 100% Hi-Pot test
* MTBF: 100, 000 hours at 25 cent degree
INPUT  SPEC.
Input voltage: 90V-264V
Input current: 4.0A (Max. )at 230VAC/6A(Max)at115VAC
Input frequency: 4Hz7-63Hz
Efficiency: 68%Min,at full load 230VAC/50Hz
OUTPUT SPEC.
Voltage: +3.3V +5V +12V -12V +5Vsb
Over loading: 16A 12A 16A 0.5A 2.0A
Light loading: 0.5V 0.5V 1.0V 0A 0.1A
Voltage limit: +/-5% +/-5%+/-10%+/-5%
PG signal: 100-500ms
PF signal: 1ms Min
Short circuit 16ms Min
