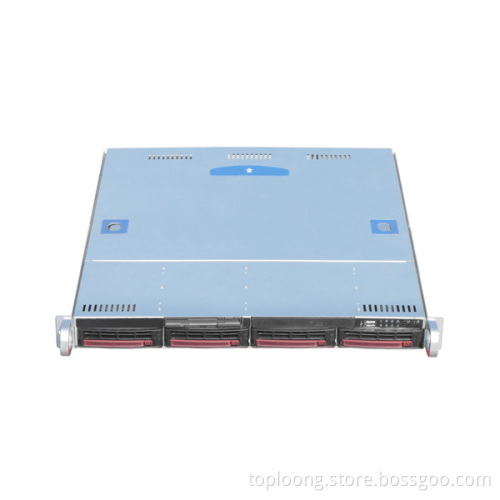

Hot-Swap Case (1UR165-4)

Product name: Hot-swap case(R165-4)
Dimensions(mm): H650mm*W440mm*H44.5mm, Standard 19" rackmount hot-swap case, provided guide rail in both sides of the case.
Materials: Super 1.0mm/SGCC refined, stable structure, exquisite craft.
HDD Bays: 4 standard 3.5" HDD bays. Compatible with SATA and SAS ports. Embedded backplane to perform hot-swap function
CD-ROM Bays: 1 super-slim Notebook's
FDD Bays: 1super-slim.
USB Ports: 2 external USB ports.
M/B: Support 12"× 13" Max.
HDD Enclosures: 4 HDD Enclosures with lock device, slide rail makes removing easily.
Indicators and switch: 2*NIC indicator, 1*Power indicator, 1*HDD indicator, 1* Power switch, 1* Reset switch, light guide in each HDD Enclosure to indicate the status of Power Supply and HDD precisely.
Fan bays: 5* 4028 fan bays in the middle can connect to the hot-swap backplane directly, the vent in the rear openings makes excellent heat dissipation performance, dust screen with HDD Enclosure in the front panel makes good dust-proofing effect.
Hot swap backplane: Compatible with SATA and SAS, and equipped with fan port, adjusting the speed of fan according to case's inner temperature to control it intelligently, 4 groups of indicators on backplane to show the status of HDD and Power supply precisely.
Power Supply: The length of 180-250standard 1U PS
Application: Applied to the field of Mass storage (FTP/Web/Mail/Database/VPN/SAN)
