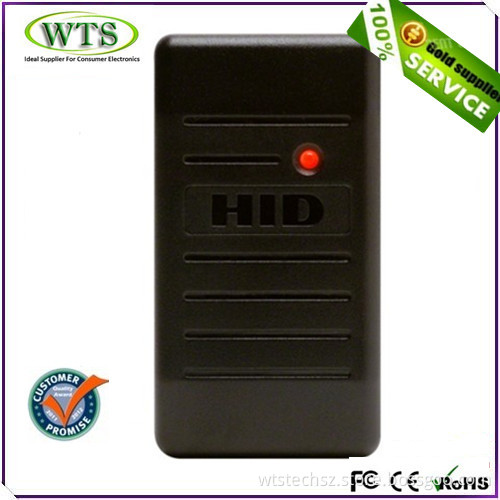

Proximity HID 125kHz Compatible Reader

Proximity HID 125kHz Compatible Reader

Support card: All 125kHz HID proximity card, such as HID prox II, HID FOB card and more
Interface: Wiegand 26/34
Reader range: 5 to 10cm
Frequency: 122 to 128kHz
Dimensions: 76 X 43 X 13mm
Power requirement: 5 to 16V DC at 100mA
A linear regulator is recommended
Operating temperature: -30 to +60° C
Operating humidity: 5 to 95% RH (relative humidity non-condensing)
Audio/visual indication: Green, red, and buzzer signal output
Response time: Less than 0.2 seconds
Cable length: 250mm
Weight: 60g
Red: Power 5 to 16V
Black: Power ground
Green: Brigand output D0
White: Brigand output D1
Brown: Green LED control
Blue: Buzzer control
Yellow: Hold
LED/buzzer function description:
LED function: The LED color is normally in red

It starts with 2 green flashes on power up HID compatible card reader and remains red
When a HID proximity card is present to the reader
The LED will shortly flash green, this indicates that the proximity card was read properly by the reader
When the LED control signal is activated by access controller host, the LED changes to green
Beeper function: Power up the HID compatible card reader, the beeper will activate 2 times when a HID proximity card is presented to the HID proximity card reader, a short beep will be emitted
This indicates that the HID, proximity card was read properly by the reader.
