Product Description
Product Description

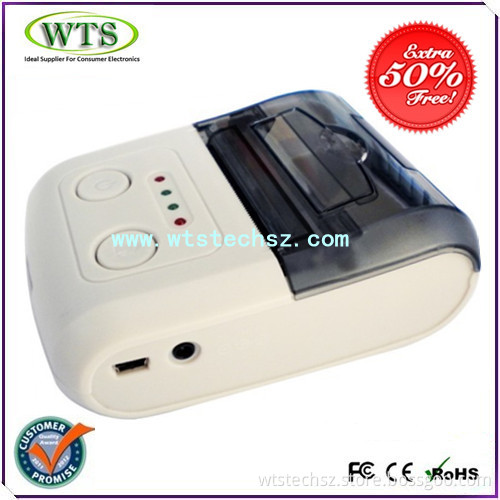

Portable Mobile Bluetooth Thermal Receipt Printer
1. Specification
Printing method: Thermal line printing
Printing speed: 80mm/s
Effective print width: 48mm (58mmpaper width)
Characters / line: 16 Chinese / line, 32 English characters / line
Support characters: Chinese GB2312 and English characters (totally 8178 pcs).
Character size: English character 12× 24 dots, Chinese: 24× 24dots.
Control command: Support ESC/POS printing command set. Support English characters and Chinese characters, negative, mirror image, upper line, underline, row distance, word distance adjustment and so on.
Interface: USB interface/ bluetooth
Driver: Offer WINDOWS98/2K/XP/VISTA/Win7driver.
Power: DC9V/1A
Dimension: 115mm× 84mm× 46mm
Working environment: Temperature 0-50, humidity: 10-90%
2. Driver metod
There are two driver method of POS58M: One is install USB to PL2303 driver in Windows9X/ME/2000/XP/VISTA/Win 7, the second way is cel-phone blue-teeth driver.
Regarding POS58-MU (USB interface), please install the driver for USB to PL2303 before using the printer.
U Warm tip: Blue-teeth printing and USB printing could not use at the same time.
3. Thermal paper installation
Open the printer paper cabinet, put the thermal paper into it and close the paper cover. Turn on the power switch, the sensor detects paper less, the red indicator light, waiting for loading paper. During the process of loading paper, when the paper sensor detects the paper again, the red indicator light turns off.
After paper installed correctly, if feed paper does not reach ideal effect, could press FEED adjust manually.
1. Specification
Printing method: Thermal line printing
Printing speed: 80mm/s
Effective print width: 48mm (58mmpaper width)
Characters / line: 16 Chinese / line, 32 English characters / line
Support characters: Chinese GB2312 and English characters (totally 8178 pcs).
Character size: English character 12× 24 dots, Chinese: 24× 24dots.
Control command: Support ESC/POS printing command set. Support English characters and Chinese characters, negative, mirror image, upper line, underline, row distance, word distance adjustment and so on.
Interface: USB interface/ bluetooth
Driver: Offer WINDOWS98/2K/XP/VISTA/Win7driver.
Power: DC9V/1A
Dimension: 115mm× 84mm× 46mm
Working environment: Temperature 0-50, humidity: 10-90%
2. Driver metod
There are two driver method of POS58M: One is install USB to PL2303 driver in Windows9X/ME/2000/XP/VISTA/Win 7, the second way is cel-phone blue-teeth driver.
Regarding POS58-MU (USB interface), please install the driver for USB to PL2303 before using the printer.
U Warm tip: Blue-teeth printing and USB printing could not use at the same time.
3. Thermal paper installation
Open the printer paper cabinet, put the thermal paper into it and close the paper cover. Turn on the power switch, the sensor detects paper less, the red indicator light, waiting for loading paper. During the process of loading paper, when the paper sensor detects the paper again, the red indicator light turns off.
After paper installed correctly, if feed paper does not reach ideal effect, could press FEED adjust manually.
