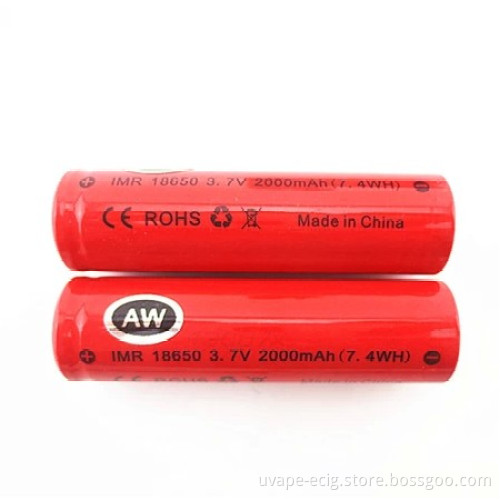

Hot Selling Aw Imr Rechargeable 18650 Li-ion Battery 2000mAh Aw Battery

AW 18650 manufacture 2000mAH aw imr 18650 battery
Specifications
1 Model: Aw batteri 18650 2000mAh
2 Type: Li-ion battery cell (button top)
3 Size: 18650
4 Nominal capacity 2000mah 0.2C Discharge
5 Nominal voltage 3.7 V
6 Charge current and Time Standard Charge: 0.5C Time: Approx 5 hours
Rapid charge: 1.0C Time: Approx 2.5 hours
7 Standard Charging method
0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤ 0.01C
8 Max. Charge current
Constant Current 1C Constant Voltage 4.2V 0.01 C cut-off
9 Max. Discharge current
Constant current 1.0C end voltage 2.75V
10 Standard Discharge Current
Constant current 0.2 C end voltage 2.75V
11 Discharge cut-off voltage
4.2V
12
Charge cut-off Voltage
2.75 V
13
Initial Impedance
≤ 80mW
14
Weight
Approx: 29g
15
Operating temperature
Charging: 0° C~45° C
Discharging: -20° C~60° C
16
Storage temperature
-5° C~35° C
17
Storage Humidity
≤ 75% RH
ModelNomional Voltage(V)Capacity(mah)Cell dimensions(mm)Charge&DischargeWeight ( g )
Diameter(± 0.2)Height(± 0.5)Charge current ( C )Discharge current ( C )
IMR 186503.7180018.364.50.5143
IMR 186503.7200018.364.50.5143
IMR 186503.7220018.364.50.5143
IMR 186503.7230018.364.50.5143
IMR 186503.7260018.364.50.5145
IMR 186503.7290018.364.50.5145
IMR 186503.7310018.364.50.5145
IMR 186503.7340018.364.50.5146
IMR 183503.7120018.135.50.5121.5
IMR146503.715001423.50.5116
IMR145003.770014490.5124
IMR163403.770016340.5118
IMR185003.7140018490.5134
IMR266503.7400026650.5180
IMR104403.735010440.518.8
IMR144303.765014430.5122
IMR176703.714001765
