Wound Disinfection / Ozone Generator

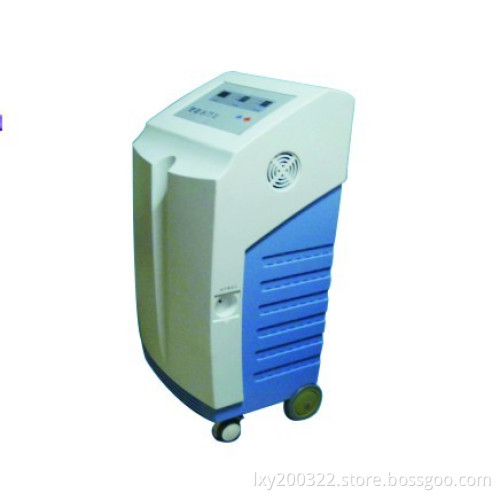

Medical Multifunctional Washer Machine with Ozone
Technical parameters:
1.2. Ozone concentration: 18%-20%
2. Concentration of ozone water: >=8 mg/L
3. Ozone water temperature: 25-34± 2
4. Input power: Unit Power: 220VA
Heating power<1200VA
5. Generator operating current: 12A± 0.5A
6. Environmental requirements:
Temperature: 5-35
Relative humidity90%
7. Raw water: Conductivity 50uS/cm
8. Dimensions: 405x385x830 (mm)
9. Weigh: ~40kg

Application:
Ozone treatment and rinse for gynecological vaginitis, cervicitis, and other types of inflammation, to meet the 10 patients at the same time, reducing the gynecological wash equipment depreciation costs apportioned.
Diabetic foot wound wash, activate cells, promote blood circulation, accelerate wound healing, can greatly reduce the agony of amputation of diabetic patients.
Surgical wound rinse, significantly better than iodine and hydrogen peroxide debridement effect. No stimulating pain, burning sense of the pain. Reducing disposal costs.
Advantages:
Ozone water on the lesion sterilization, disinfection washing.
Ozone generate very fast, only within 30 seconds, a steady stream required to yield a cure for ozone disinfectant.
Disposable wash head (vacuum packaging), to avoid cross-infection.
FAQ:
Q: Why the ozonated water is irritative make by CD, UV ozone generator, and ozonated water concentration is low (belwo 2.0ppm), and bad stabilization?
A: 1, A large amount of ozone cannot dissolve in water so that they vents out. Ozone gas is irritative.
2, there is Henry formula for ozone dissolvability in water. More higher ozone concentration, more easier ozone dissolvable in water: In the opposite, it is hard for ozone produced by CD, UV to dissolve in water at 2.0ppm, also CD, UV type not only produce ozone, but also oxygen, nitrogen and NOX.
Q: Why wter might flow backward in CD, UV type ozonated water machine, and damage the tubing? However PEM type never?
A:
1, Ozone concentration in outflow is low produced by CD, UV type, so it would need a large amount of ozone gas drawn in mixer pump to mix with water. This large amount of ozone gas force on the tubing heavily and with long time accumulation, it may damage the tubing, as acting in the counter-pressure, water would flow into tubing and damage ozone generator.
2. The need for same amount of ozone will require much smaller amount of ozone gas produced by PEM unit, this amount of ozone gas force on the tubing is slight compare with the maximum load bearing of tubing. Also we add a controller(with valve, ventage) on the tubing on control the gas flow rete, even under effect of counter-pressure, when water flow into tubing, the valve will be shut up, and water will go out from ventage and keep PEM ozone system safe.
9.2 Features of PEM ozone generator
A. High concentration of ozone production up to 20%wt.
B. Ozone gas without NOX and carcinogen.
C. Steadily ozone output with high degree resistance of humidity up to 85%.
D. Adopted with low-tension DC electro-catalytic membrane, there is no electromagnetic wave or noise or interference existing during PEM ozone generator running or several units running.
E. High concentration of ozone gas for good dissolvability in water for a wide application that require ozonated water.
F. Durable material of polymer electrolytic membrane ensure the lifetime of membrane over 10, 000hours.
G. Self recycle of pure water system to take out the heat of water electrolysis.
