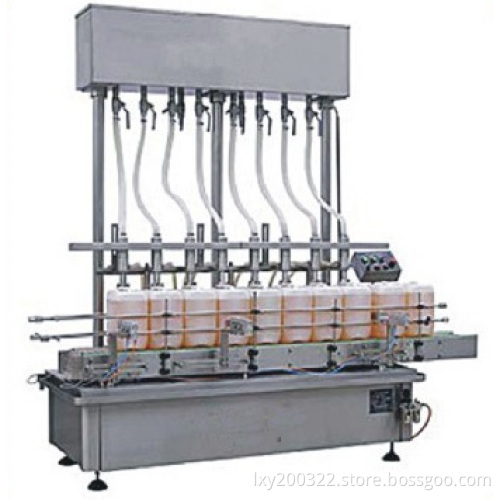

Linear Overflow Filling Machine

This series linear backflow defoaming liquid filler is suitable for various liquids that are easy to foam while filling as well as no foaming liquids, widely used in food, chemicals, peticides, and pharmaceuticals fields. It can not only be used seperately, and also can be linked to production lines. It's the fastest and most reliable defoaming filler home and abroad.
Characteristics:
*Adopting centrifugal pump to fill and backflow filling nozzles to suck-back foams, in case of foam overflow and drop leakage phenomena.
*With lower-position storage tank, convenient to clean and sterilize the machine.
*Using bottleneck-clipping device ensures the accurate positioning of filling-nozzles, inside bottle filling after posioning.
*Easy and convenient to adjust filling dosage and change bottles of different sizes.
*Totally in accordance with GMP requirements.
Main technical parameters:
Filling scope: 50-5000ml
Filling nozzle: 4, 6, 8, 12, 16 nozzles
Filling error: ≤ 2% standard filling dosage
Compressed air pressure: ≤ 0.6-0.7Mpa
Air cosumption: 15-40M³ /Hr
Voltage: 220/380V 50Hz
Power: ≤ 2KW
Single machine noise: ≤ 50dB
N. W.: ≤ 1000kg
Production capacity (based on 250ml)
4-nozzle filler: 30BPM
6-nozzle filler: 45 BPM
8-nozzle filler: 60 BPM
12-nozzle filler: 80 BPM
16-nozzle filler: 100 BPM
